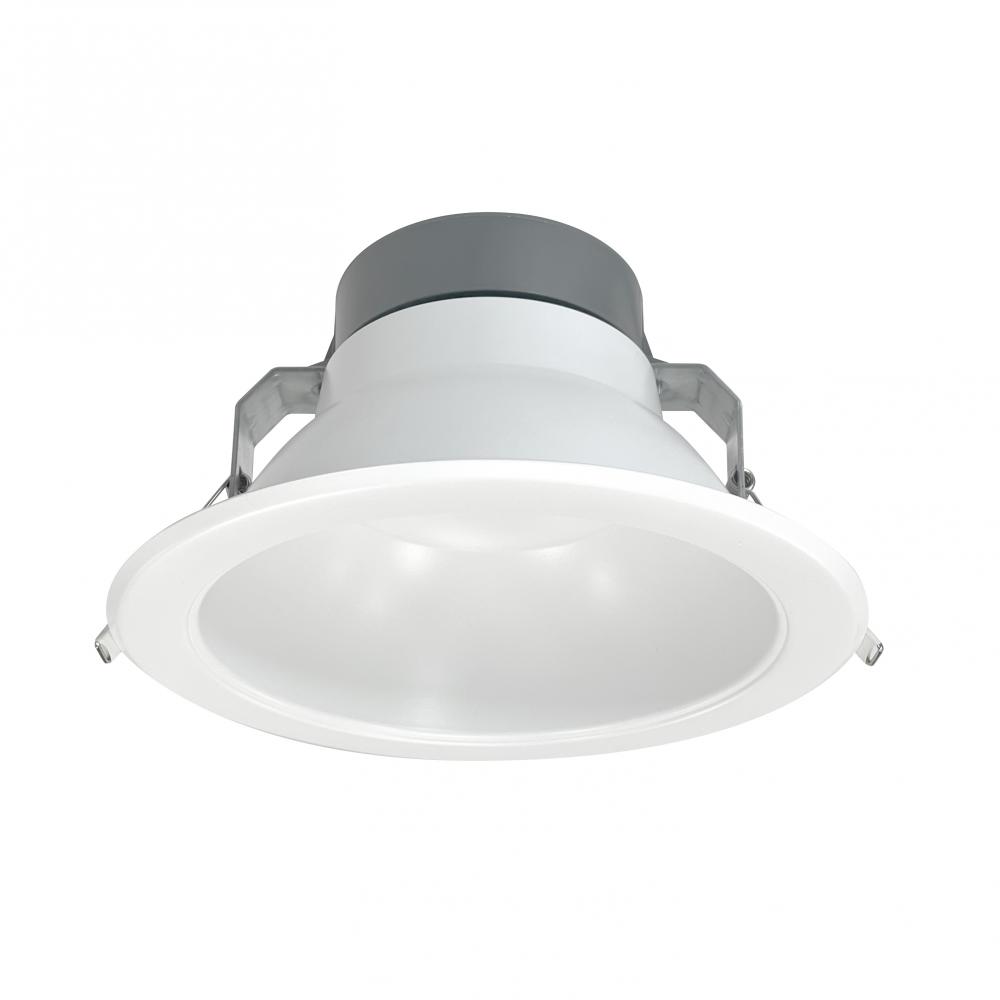

8" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation.
Rating: IC
Input Voltage: 120-277VAC
Lumens / Wattage: Selectable Lumens (1650lm / 15W; 2200lm / 20W; 2700lm / 25W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
Dimming: 0-10V
Finish: White
Accessories: Oversize Ring (NQZ-8OR-MPW), New construction frame-in (NQZ2-8R-F) or Reflector inserts (NQZ-81REFL)
Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV)
Listing: cETLus Listed for Wet Locations
Additional Details:
Category:
Recessed
Product Line:
LE80
Est. Shipping Wt.:
4
Length:
9.75
Lumens / Light Output:
Selectable Lumens (1650lm / 2200lm / 2700lm)
Ship Carton Height:
6
Ship Carton Length:
11.75
Ship Carton Width:
11.75
Weight:
2
CCT:
Selectable CCT (3000K / 3500K / 4000K)
CEC Database:
Y
CEC Item Number:
NQZ2-81TWTW-***
CEC Substitute Item:
NQZ2-86TWTW-MPW
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
14
Master Box L:
25
Master Box Qty:
8
Master Box W:
25
Master Box Wt.:
26
Product Family:
Quartz
Safety Listing:
cETLus
Wattage:
Selectable Wattage (15W / 20W / 25W)
Standard Category:
Recessed Ltg.
Standard Subcategory:
Other Recessed Ltg.
Standard Option:
Energy Star
, Title 24
Product Line:
LE80
