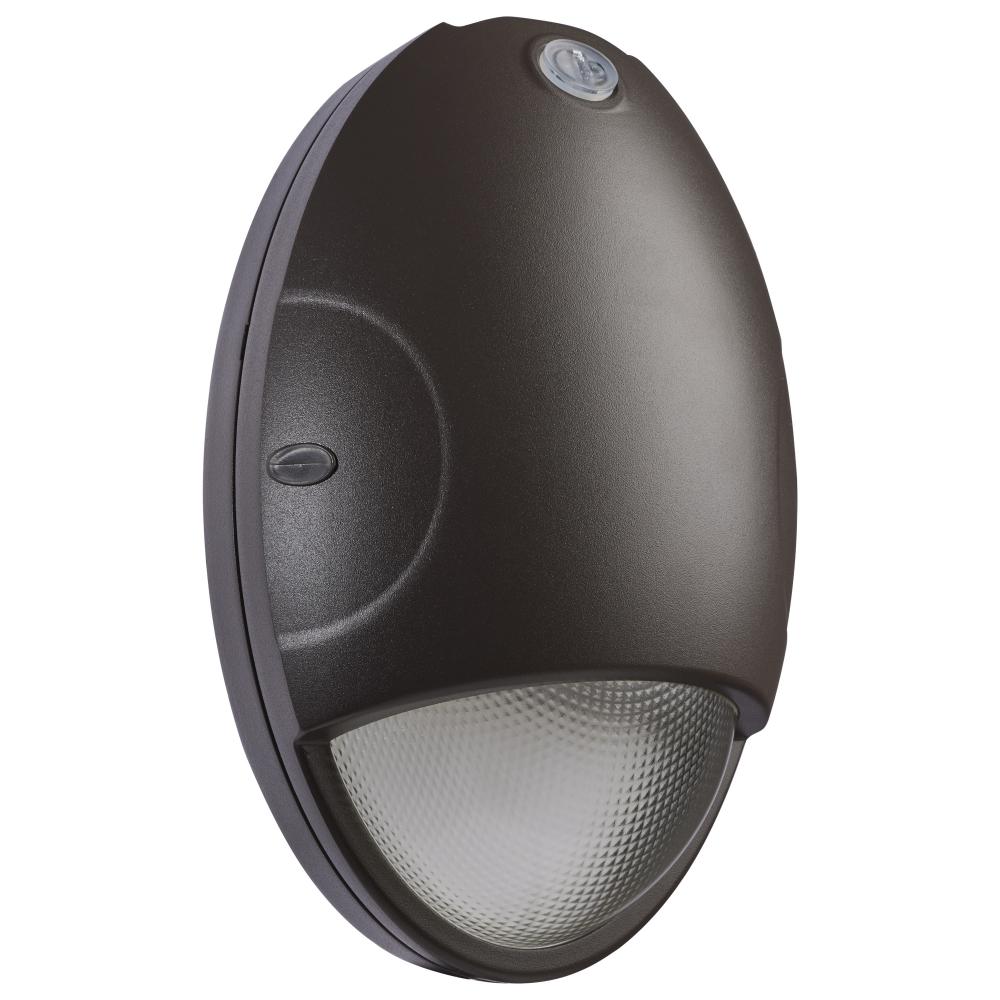

Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish
Additional Details:
Category:
Wall Pack
Sub Category:
Emergency Lighting
Style:
Utility
Additional Info:
Battery Mode: 5 Watts, 90 Minute Run Time
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Natural Light
Diameter:
6.54
Dimmable:
Yes-Dimmable
Each Height:
10.83
Each Length:
6.77
Each Width:
4.06
Lumens:
1740L-1814L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.125-0.054A
ANSI Base:
Integrated
Battery Chemistry:
Lithium-ion (Li-ion)
Beam Angle:
100
B_U_G_Rating:
B1-U3-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.1723
Each Quantity:
1
Efficacy:
116.00/118.47/120.93 LPW
FCC Compliant:
Yes
Feature 1:
3500K/4000K/5000K CCT Selectable
Feature 2:
Integrated EM Backup Test Indicator Button
Feature 3:
Integrated by-passable photocell
Feature 4:
Wet Location
Feature 5:
IK08
Feature 6:
DLC Premium
Feature 7:
Bronze Finish
Feature 8:
H: 10.47 inches X W: 6.54 inches X D: 3.78 inches
Finish Family:
Bronze
Fixture shape:
Oval
Flicker Free:
No
Has Emergency Battery:
Yes
HID Equiv:
60W
Impact Rating (IK):
IK08
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Prismatic
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's state of the art Emergency Battery Backup Wall Pack is a compact and sleek lighting solution designed to keep your space safe and well-illuminated during emergencies. Equipped with an integrated EM backup test indicator button, this fixtur
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
0C (+32F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Color Box
Photocell:
Has Photocell
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's state of the art Emergency Battery Backup Wall Pack is a compact and sleek lighting solution designed to keep your space safe and well-illuminated during emergencies. Equipped with an integrated EM backup test indicator button, this fixtur
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
LED SMALL EM WALL PACK BRONZE
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
3.61
Standard Category:
Utility
Standard Subcategory:
Emergency Lights
Standard Option:
LED
, Prop 65
:
