Category:
Flat Panel
Sub Category:
Backlit Emergency
Style:
Utility
Additional Info:
Driver Specs - VDC38-48V; 430/620/810mA
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
13.39
Each Length:
49.02
Each Width:
2.56
Length:
47.72
Lumens:
2200L-4600L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
3.54
Air Tight:
No
Amps:
0.200-0.072/0.300-0.108/0.400-0.144A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Standard
DLC Primary Use:
1x4 Luminaires for Ambient Lighting of Interior Commercial Spaces; Low-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.9724
Each Quantity:
1
Efficacy:
110.00/113.33/115.00 LPW
FCC Compliant:
Yes
Feature 1:
3500K/4000K/5000K CCT Selectable
Feature 2:
20W/30W/40W Wattage Selectable
Feature 3:
Integrated emergency battery backup with 90-minute run time
Feature 4:
Flicker Free, Even Light Distribution
Feature 5:
0-10V Dimmable
Feature 6:
50,000 average rated hours of use
Feature 7:
DLC Listed
Finish Family:
White
Fixture shape:
Rectangle
Flicker Free:
Yes
Has Emergency Battery:
Yes
IC Rated:
Yes
Incandescent Equivalent:
100W-150W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO NUVO's LED Backlit 1x4 Flat Panel 65-577R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at t
Material:
Aluminum / Steel
Mounting Procedure:
Ceiling
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-17C (+1.4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Panel Size:
1x4
Photocell:
No Photocell
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
13
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configu
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:

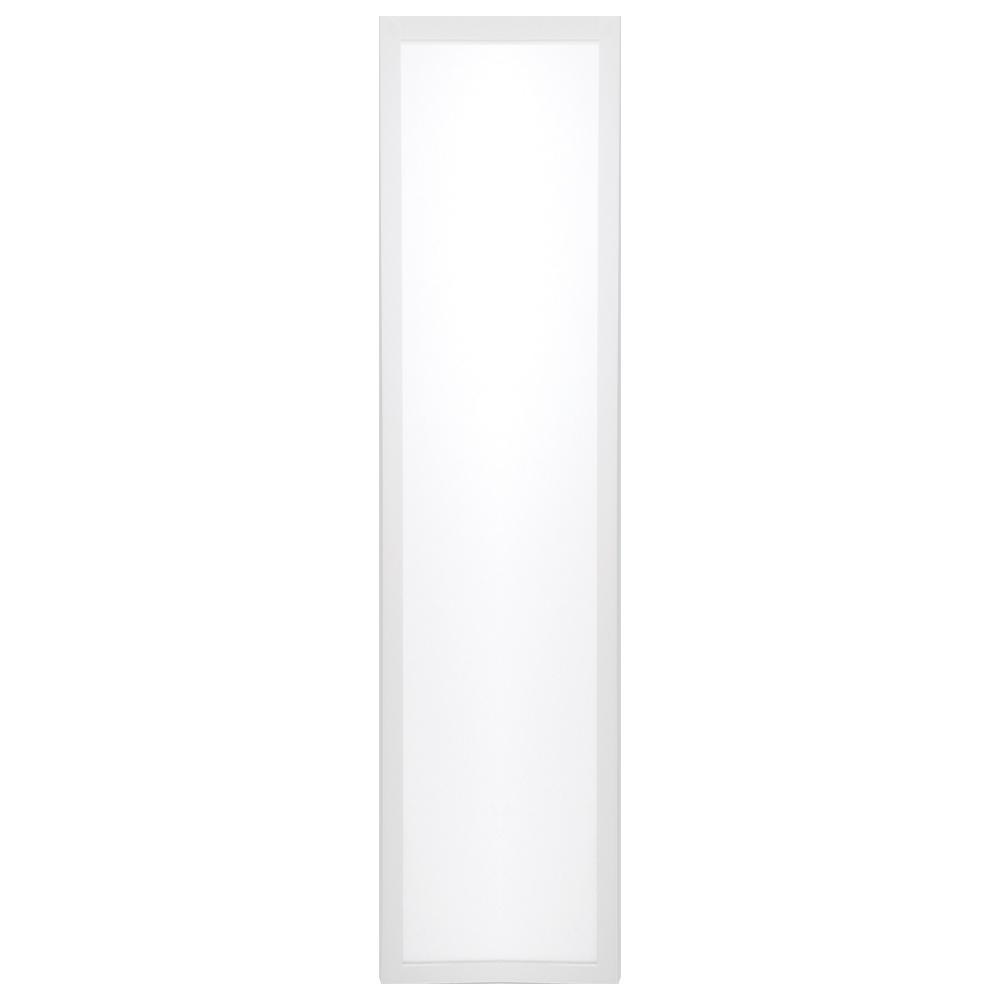

1X4 LED EM BACKLIT FLAT PANEL
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
9%
Wattage Selectable:
Yes
Weight Lb.:
4.98
Wire Gauge:
14
Wire Temp Rating:
80C (176F)
Standard Category:
Specialty Items
Standard Subcategory:
Lighting Accessories
Standard Option:
LED
, Prop 65
Standard Lumens:
1601-2600
Standard Kelvin:
4001-4500
