Category:
LED
Sub-Category:
LED T9 Circline
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K
Bulb Shape:
T9
Diameter:
1.13
EA Length:
1.5
Harmonized Codes:
8539.52.0010
Length:
11.75
Lumens:
1600L
Shap Carton Width:
12.0
Ship Carton Height:
12.0
Ship Weight:
0.38
Warranty:
5-Years
Weight:
0.47
Additional Info:
Replaces 32W fluorescent Circlines
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
135
Bulb ANSI Base:
G10q
Bulb Base:
G10q (4-Pin)
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.125
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
100.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 12.00 inches, MOD: 12.00 inches
Feature 2:
Superior 80 CRI light quality, 1600 lumens, 3000K warm white light, with a 135 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp location rated
Feature 5:
16 watt LED replaces 32 watt fluorescent
Feature 6:
Frost finished circline plastic bulb with white housing
Feature 7:
LED energy efficient fixture
Feature 8:
5 year limited warranty
Flourescent Equivalent:
32W
Has Camera:
No
Has Emergency Battery:
No
Housing Color:
White
Incandescent Equivalent:
100W
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Long Description:

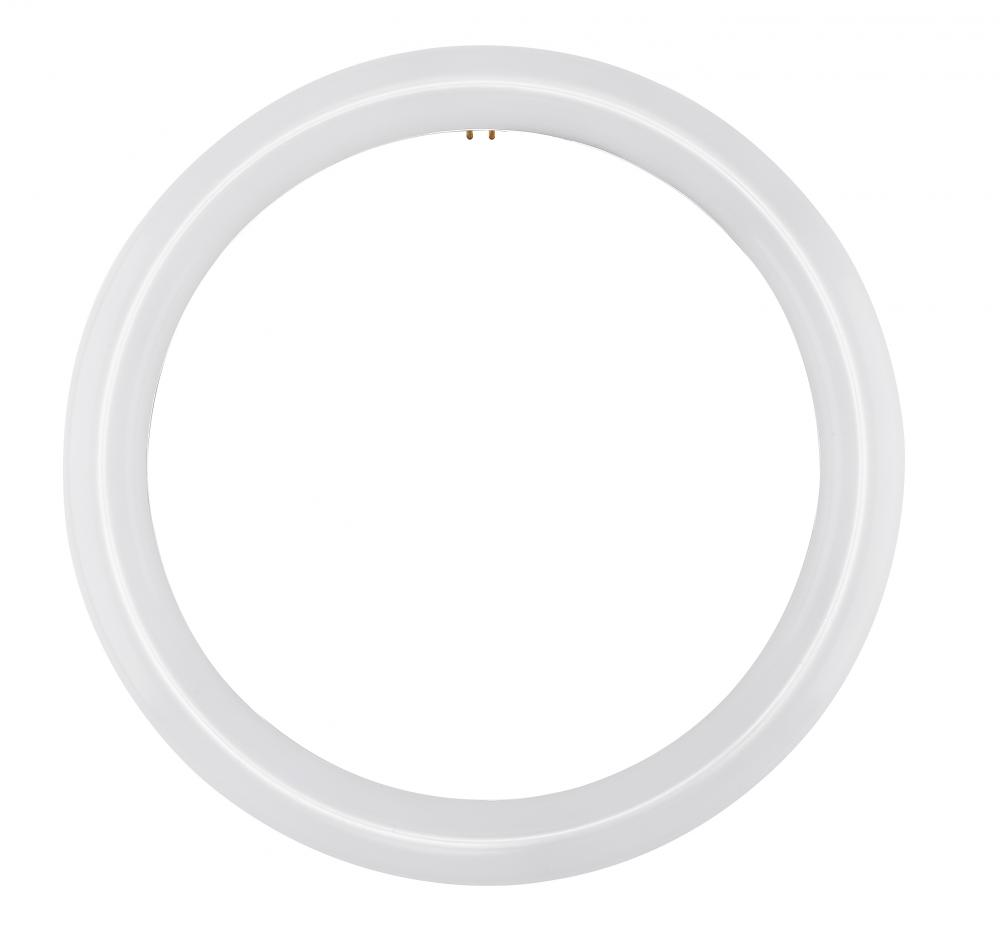

Satco's S16503 T9 16 watt LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 de
Nominal Length:
12.0
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
15
RoHS Compliant:
Yes
Romance Copy:
Satco's T9 16 watt LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 degrees a
SDS class:
LED_Lamp
Short Description:
FC12T9/LED/CIR/830/BP
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
16W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Finish:
White
Standard Style:
Traditional
Standard Lumens:
1101-1600
Standard Kelvin:
2501-3000
