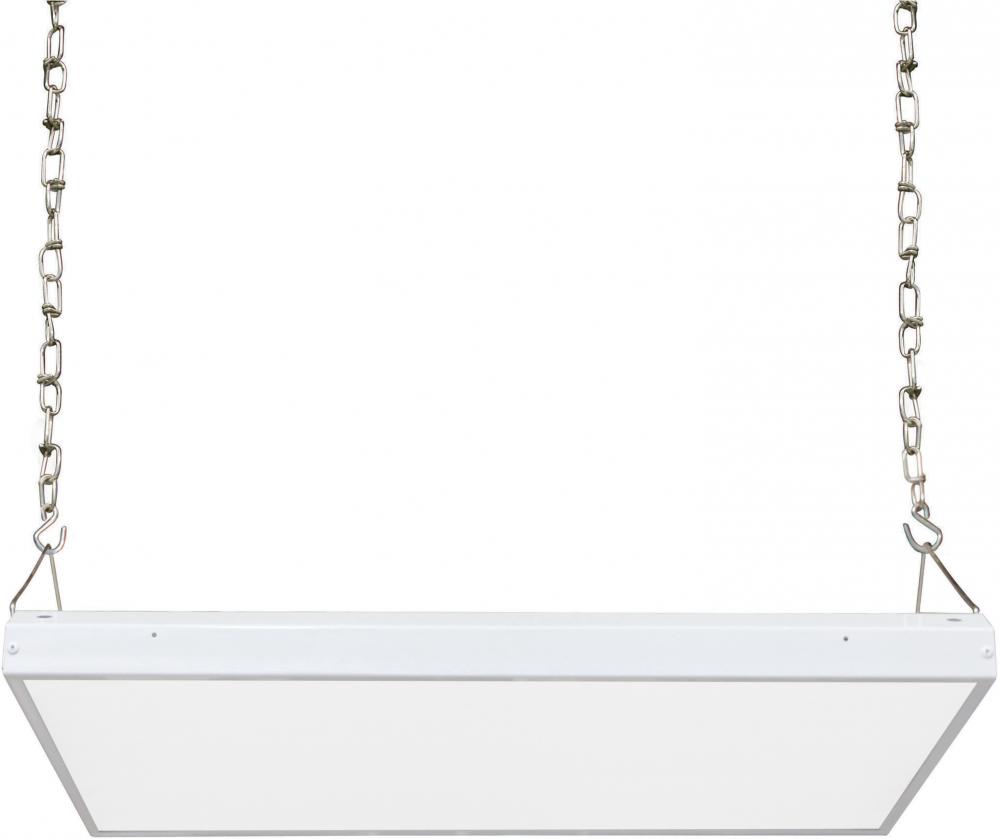

LED 2 ft. Linear Hi-Bay; 80W; 4000K; 100-277V
Additional Details:
Category:
Hi-Bay
Sub Category:
Linear
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Dimmable:
Yes-Dimmable
Each Height:
15.75
Each Length:
25.79
Each Width:
4.33
Length:
23.82
Lumens:
10800L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Amps:
0.800-0.289A
ANSI Base:
Integrated
BAA Compliant:
No
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
1.0178
Each Quantity:
1
Efficacy:
135.00 LPW
FCC Compliant:
Yes
Feature 1:
Length: 23.82 inches, Width: 12.60 inches, Height: 2.99 inches
Feature 2:
Dimmable
Feature 3:
Damp location rated for indoor use
Feature 4:
4000K Cool White Light
Feature 5:
Superior 80 CRI light quality
Feature 6:
5 year limited warranty
Feature 7:
10800 lumens
Feature 8:
Rated for 50,000 hours
Feature 9:
FCC and RoHS compliant
Finish Family:
White
Incandescent Equivalent:
400W
Includes:
(2) 48 Inch Chain; (2) V-Clips; (1) 1.02 Inch Mounting Bracket
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Long Description:
SATCO NUVO's 65-501 80 watt, 2 foot LED Linear High Bay fixture provides broad, even light distribution in all commercial applications. Illuminate your work space with this energy saving LED fixture that is functional and efficient. With a high lumens
Material:
Aluminum
Mounting Procedure:
Ceiling: Chain
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.96
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's 80 watt, 2 foot LED Linear High Bay fixture provides broad, even light distribution in all commercial applications. Illuminate your work space with this energy saving LED fixture that is functional and efficient. With a high lumens count,
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
80W LED 2FT LINEAR HI-BAY
Temperature (CCT):
4000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
11.20%
Wattage Selectable:
No
Weight Lb.:
10.89
Standard Category:
Utility
Standard Subcategory:
Other Utility
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
4001-4500
:
