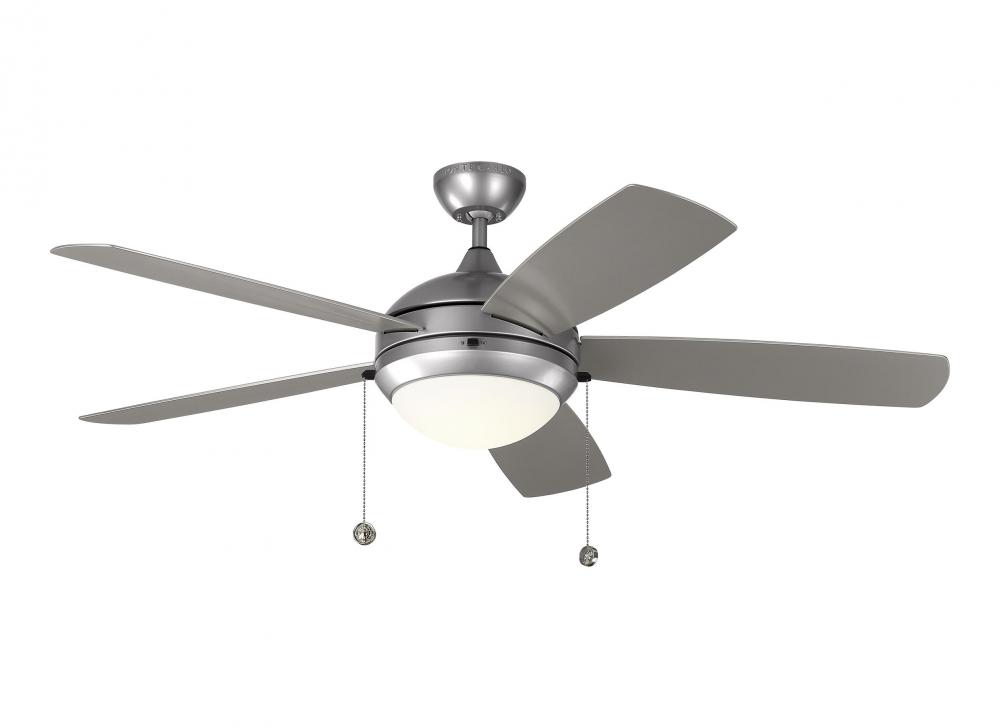

The Discus Outdoor 52 Fan in Painted Brushed Steel features a 153.0 X 18.0 3 speed motor with a Twelve degree blade pitch. The Discus Outdoor is the Wet-Rated outdoor version of the best-selling Discus Fan. This 52", 5-blade fan features an integrated 20W LED light with 800 lumens output, pull-chain operation with three-speeds and manual reverse. The Discuss Outdoor is Wet-Rated and an excellent choice for outdoor spaces.
Additional Details:
Category:
Ceiling Fan
Finish:
Painted Brushed Steel
Style:
Modern
Option:
Title 24
Family:
Discus
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Blade Finish:
Painted Brushed Steel
Blade Pitch:
12
Blade Span:
52
Bulb Type:
Array
Canopy:
5.13 Dia x 2.25 H
Introduction Date:
01/01/2018
Kelvin:
2700
Keyword(s):
Covered Patios & Porches Sheltered from High Winds, Gazebos Sheltered from High Winds
Light Kit Included:
Yes
Lumens / Light Output:
715
Motor Size:
153 x 18 mm
Motor Type:
AC
Order Minimum:
1
Remote Control Included:
No
Ship Carton Height:
9
Ship Carton Length:
23.25
Ship Carton Width:
13.25
Ship Weight:
23.8
Sold By:
EA
Vendor Ship Method:
Parcel
Weight:
20.5
Blade To Ceiling Height:
10.6
Bulb Base:
19 - Integrated
Bulb CRI:
90
Bulb Dimming Range Max:
100
Bulb Dimming Range Min:
10
Bulb Included:
Yes
Bulb Light Source Name:
LED
Bulb Rated Life:
50000
Bulb Watts Rated:
20
C&N:
Pull Chain Operation, 3-Speed, Manual Reverse Switch
Canopy Style:
Downrod
Capacitor Value:
4.5uF/350V/85C
CFM High:
4470
CFM Low:
1902
CFM Watt High:
73
CFM Watt LOW:
136
Country of Origin:
China
Downrod Diameter:
0.5
Downrod Length:
4.5
Energy Star:
No
Fan Style:
Traditional
Freight Class:
110
Lamping:
1 Array Integrated 20 Watt Light Bulb
Location Rating:
Wet Rated
Max Ceiling Slope:
30
Max Wattage:
20 W
Maximum Blade To Ceiling Height:
10.6
Minimum Blade To Ceiling Height:
9.2
Minimum Ceiling Height Required:
7.88
Number of Blades:
5
Overall Height:
15.1
Qty Fabric Glass Shades:
1
Safety Rating:
cETL Approved
Shade Diameter:
9
Shade Finish:
Matte Opal
Shade Shape:
Round
Standard Efficiency:
83
Standard Energy Use Wave:
39
Standard Estimated Yearly Energy Cost:
11
Standard Weighted Average Airflow:
3266
Title 24:
Yes
Watts High:
61
Watts Low:
14
Standard Category:
Fans
Standard Subcategory:
Ceiling Fans with Light
Standard Finish:
Steel
Standard Style:
Traditional
, Modern
Standard Option:
Title 24
, Wet Rated
Standard Voltage:
100-120
Standard Lumens:
450-800
Standard Number of Blades:
5 Blades
Standard Kelvin:
2501-3000
Standard Location Rating:
Wet Rated
Family:
Discus
