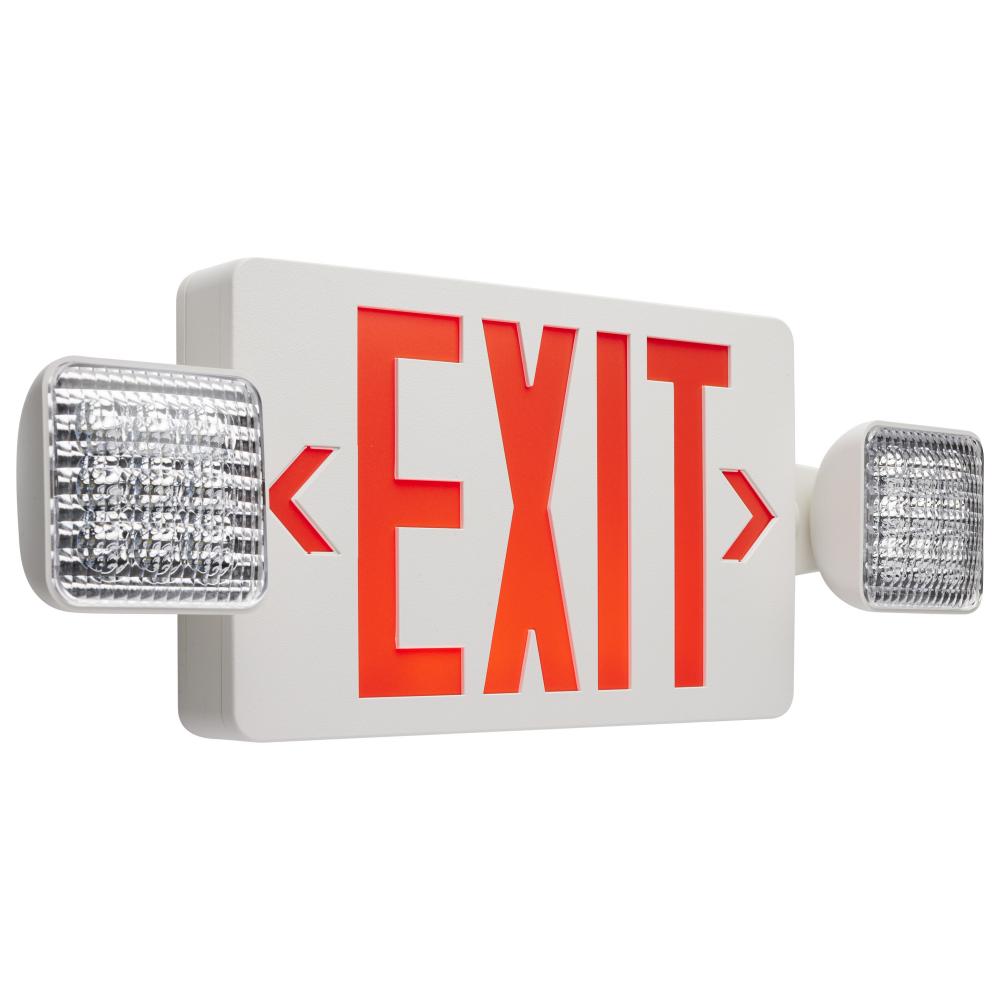

Combination Red Exit Sign/Emergency Light, 90min Ni-Cad backup, 120/277V, Dual Head, Single/Dual Face, Universal Mounting
Additional Details:
Category:
Lighting Products
Sub Category:
Exit & Emergency
Style:
Utility
Additional Info:
Input Wattage: 2.8W; Output Wattage: 1.5W; Energy Used in Maintenance Mode: 2.8W
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Non-Dimmable
Harmonized Codes:
9405.61.6000
Lumens:
150L
Ship Carton Height:
3.43
Ship Carton Length:
15.98
Ship Carton Width:
7.56
Warranty:
2 Year Limited
Amps:
0.023/0.010A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Ni-Cad
CA Prop-65:
Lead
Carton Cubic Feet:
0.2398
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
70
Depth:
4
Efficacy:
53.57 LPW
FCC Compliant:
Yes
Feature 1:
Red Lettering
Feature 2:
Single or Dual Face
Feature 3:
Knockout Chevron Directional Arrows
Feature 4:
Two Adjustable Light Heads
Feature 5:
5VA Flame Retardant ABS Housing
Feature 6:
Ceiling or Wall Mounting Options
Feature 7:
Damp Location
Feature 8:
90 Minute Backup Run Time
Feature 9:
2 Year Warranty
Finish Family:
White
Has Emergency Battery:
Yes
Incandescent Equivalent:
25W
Includes:
Mounting hardware and accessories
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:
Keep your building safe and secure with the SATCO|NUVO LED Exit and Emergency Light Combo 67-121. With single or double face options in red lettering, knockout chevron directional arrows and integrated emergency lights, this combo is customizable to fit yo
Material:
Thermoplastic
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
60Hz
Operating Temprature:
+10C (+50F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Keep your building safe and secure with the SATCO|NUVO LED Exit and Emergency Light Combo. With single or double face options in either red or green lettering, knockout chevron directional arrows and integrated emergency lights, this combo is customizable
Safety Listing:
cULus - Certified;cULus - Listed
Short Description:
EXIT/LIGHT DH - RED
Sloped Ceiling Compatible:
No
Specification Notes:
UL94V-0, Thermoplastic, 3.6V AA900mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.; Path of Egress: 6 Ft
Temperature (CCT):
5700K
Title 20 Compliant:
Yes
Title 24 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
2.99
Standard Category:
Utility
Standard Subcategory:
Exit Signs
Standard Finish:
White
Standard Option:
LED
, Prop 65
:
