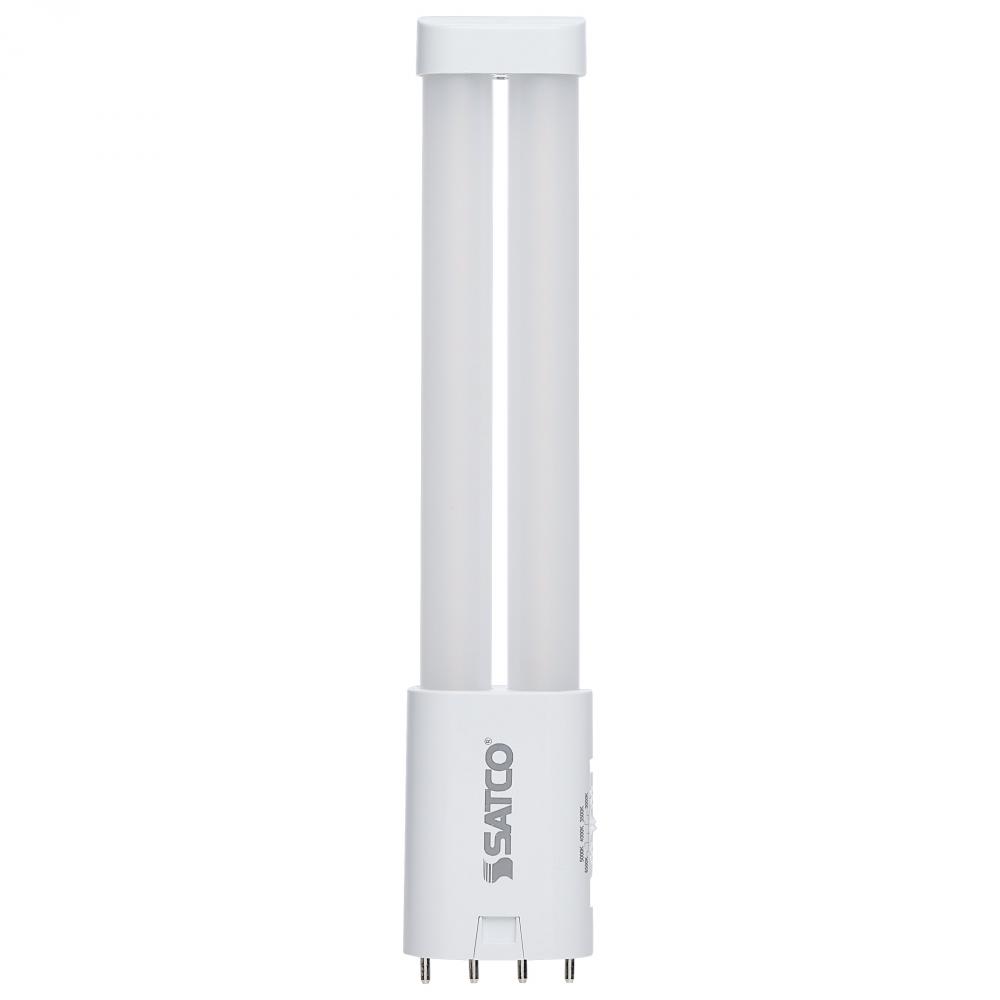

8.5 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Ballast Bypass; 120-277 Volt
Additional Details:
Category:
LED
Sub-Category:
PL-L
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T5
Diameter:
1.72
EA Length:
10.2
Harmonized Codes:
8539.52.0091
Length:
8.9
Lumens:
930L/950L/980L/980L/980L
Shap Carton Width:
1.89
Ship Carton Height:
0.9399999999999999
Ship Weight:
0.23
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.18
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
115
Bulb ANSI Base:
2G11
Bulb Base:
2G11
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0105
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
109.42/111.76/115.29 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
Suitable for Use in Enclosed Fixtures
Feature 4:
Frosted PET Glass Tubing
Feature 5:
2G11 Pin Base
Feature 6:
Damp location rated
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Flourescent Equivalent:
18W
Housing Color:
White
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Leg Spacing:
0.43
Location Rating:
Damp
Long Description:
SATCO NUVO's innovative S18420 8.5W PLL lamp offers an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, this lamp will replace outdated, less efficient CFL tubes, con
Material:
Glass
NSF Approved:
Yes
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's innovative PLL lamps offer an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, these lamps replace outdated, less efficient CFL tubes, consuming less ene
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
8.5PLL/LED/5CCT/BP
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
8.5W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
:
