Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
5.32
Each Length:
98.03
Each Width:
5.2
Length:
96
Lumens:
3900L-6750L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.250-0.108/0.333-0.144/0.417-0.181A
ANSI Base:
Integrated
Beam Angle:
120
B_U_G_Rating:
B2-U4-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium; Premium; Standard
DLC Primary Use:
Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
1.5694
Each Quantity:
1
Efficacy:
130.00/133.13/135.00 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable (Wattage and CCT)
Feature 2:
Flicker Free Driver
Feature 3:
Multiple Mounting Options
Feature 4:
8-Foot, Standard Model
Feature 5:
Durable, Polycarbonate Lens
Feature 6:
Damp location rated
Feature 7:
Numerous Accessories Available (Sold Separately)
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
HID Equiv:
150W-200W
Incandescent Equivalent:
150W-175W
Indoor Outdoor:
Indoor
Installation Notes:
Maximum connected units is 10. If dimming, the dimmer max load will dicatate how many units can be on the run/control.
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:

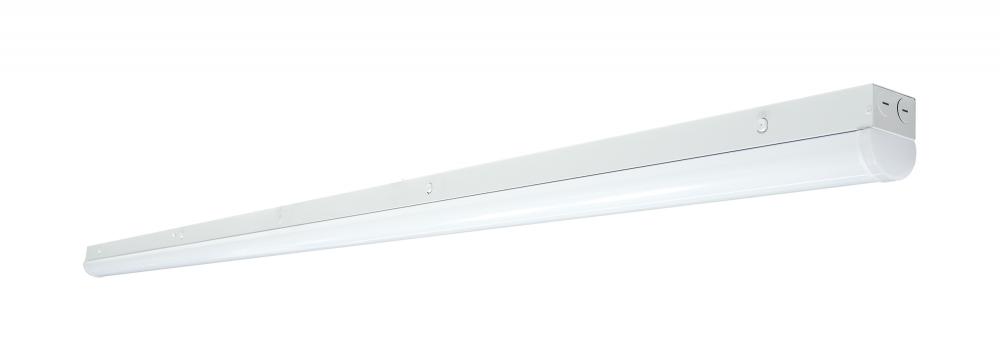

SATCO NUVO's 65-702 8-foot LED Linear Strip Fixture offers adaptable lighting for diverse applications. This field-selectable fixture provides wattage options of 30W, 40W, or 50W and color temperature settings of 3500K, 4000K, or 5000K. With a universa
Material:
Steel
Mounting Diameter:
4.75
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
27
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes, providing versatile lighting solutions for a range of applications. All fixtures are CCT selectable with 3500K, 4000K, and 5000K options, allowing users to adjust the color temperature
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
8' LINEAR STRIP WHITE FINISH
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
10.77%
Wattage Selectable:
Yes
Weight Lb.:
6.84
Standard Category:
Undercabinet
Standard Subcategory:
Strip Lights
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
4001-4500
