Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
4.33
Each Length:
96.46
Each Width:
5.12
Length:
94.49
Lumens:
6400L-9360L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.417-0.144/0.500-0.173/0.600-0.207A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Thailand
CRI:
80+
Dimmable Function:
0-10V; Integrated Sensor; Bi-Level Dimmable
DLC Classification:
Standard; Standard
DLC Primary Use:
Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
1.2375
Each Quantity:
1
Efficacy:
128.00/131.33/130.00 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable - 3 CCT and 3 Wattage
Feature 10:
Suspension kit (sold separately)
Feature 2:
8 foot
Feature 3:
Vapor Proof with Microwave Sensor Model
Feature 4:
120-347 Voltage
Feature 5:
Durable, Gray Polycarbonate Material
Feature 6:
IP65 & IK08 Rated
Feature 7:
Wet Location Rated
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
Gray
Fixture shape:
Linear
Flicker Free:
No
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
HID Equiv:
150W-200W
Impact Rating (IK):
IK08
Incandescent Equivalent:
400W-500W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:

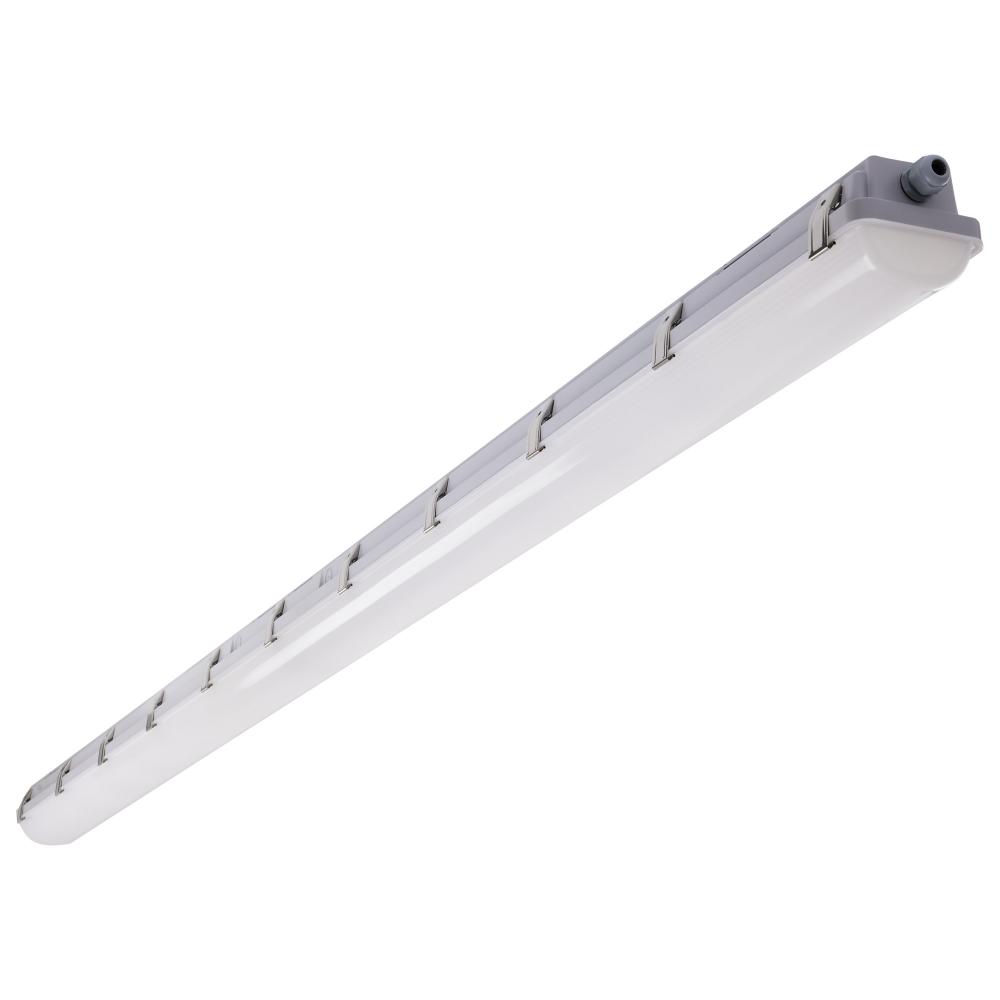

The SATCO NUVO 65-825R1 8 foot Vapor Proof LED fixture delivers powerful illumination and intelligent operation. With selectable wattages of 50W, 60W, or 72W and 3 CCT selectable options, it provides maximum adaptability. Its integrated microwave sensor ad
Material:
Polycarbonate (PC)
Mounting Procedure:
Ceiling/Wall
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Integrated Microwave Sensor
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
8' LINEAR VAPOR PROOF W/SENSOR
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
14.20%
Wattage Selectable:
Yes
Weight Lb.:
12.13
Standard Category:
Utility
Standard Subcategory:
Other Utility
Standard Finish:
Gray
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
4001-4500
