Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
Corncob
Diameter:
3.35
EA Length:
10.98
Harmonized Codes:
8539.52.0091
Length:
9.69
Lumens:
6300L/5040L/3780L
Shap Carton Width:
3.66
Ship Carton Height:
3.66
Ship Weight:
2.02
Warranty:
5-Years
Weight:
1.76
Additional Info:
Safety cable provided with S23143, S23144, S23145 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions)
B.U. G. Rating:
B2-U5-G3
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
300
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0851
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Country Of Origin:
Cambodia
CRI:
80+
Dimmable Function:
Only dimmable through wattage selection switch on lamp
Dimming Type:
Step Dimming
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-086UBA
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
Efficacy:
140.00/140.00/140.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Both
FCC Compliant:
Yes
Feature 1:
CCT Selectable-3000K, 4000K, 5000K
Feature 2:
Wattage Selectable
Feature 3:
Enclosed Fixture Rated
Feature 4:
Advanced Thermal Management
Feature 5:
Damp Location Rated
Feature 6:
4KV Built in Surge Protection
Feature 7:
Rated for 50,000 hours of use
Has Camera:
No
Has Emergency Battery:
No
HID Equivalent:
175W/150W/125W
Housing Color:
Dark Gray
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Material:
Plastic
Location Rating:
Damp
Long Description:

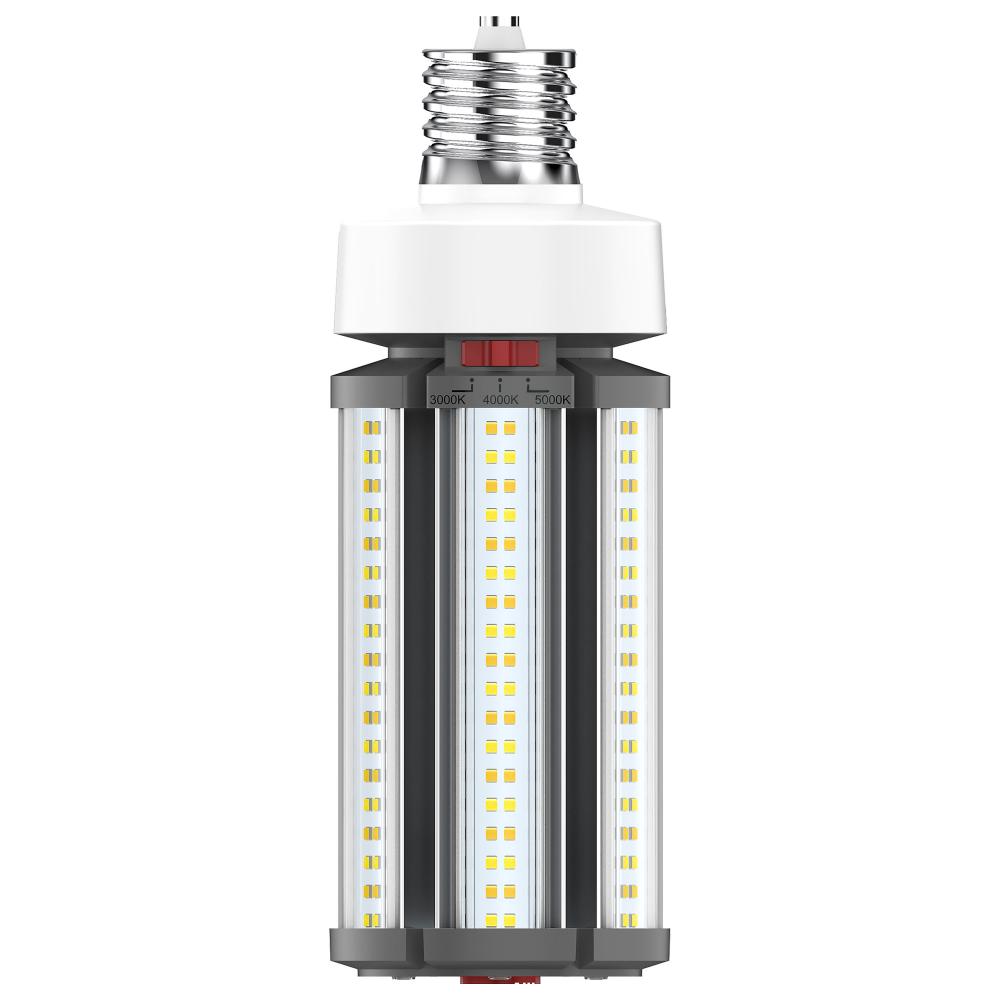

SATCO NUVO's S23141 wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light
Material:
Plastic (PS)
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
9
RoHS Compliant:
Yes
Romance Copy:
The newest generation of SATCO NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp
SDS class:
LED_Lamp
Short Description:
45W/LED/CCT/100-277V/EX39
Style:
Contemporary
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
16.30%
Wattage Selectable:
Yes
Watts:
45W/36W/27W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Style:
Traditional
Standard Lumens:
3300+
Standard Kelvin:
3001-3500
