Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Additional Info:
90 Minute Battery Backup Runtime
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
3.74
Each Length:
48.82
Each Width:
5.12
Length:
47.24
Lumens:
5360L-7991L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.333-0.115/0.417-0.144/0.500-0.173A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
LiFePO4
Beam Angle:
120
CCT Selectable:
Yes
CEC:
T20 SBCS Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Thailand
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V; Integrated Sensor
DLC Classification:
Standard; Standard
DLC Primary Use:
Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient LuminairesDirect Linear Ambient Luminaires
Each Cube:
0.541
Each Quantity:
1
Efficacy:
134.00/133.51/133.18 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable - 3 CCT and 3 Wattage
Feature 2:
4 foot
Feature 3:
Vapor Proof with Emergency Backup & Microwave Sensor Model
Feature 4:
120-347 Voltage
Feature 5:
Durable, Gray Polycarbonate Material
Feature 6:
IP65 & IK08 Rated
Feature 7:
Wet Location Rated
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
Gray
Fixture shape:
Linear
Flicker Free:
No
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
Yes
HID Equiv:
125W-150W
Impact Rating (IK):
IK08
Incandescent Equivalent:
300W-400W
Includes:
Mounting Hardware
Indoor Outdoor:
Indoor and Outdoor
IOT Enabled:
No
IP Rating:
IP65
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:

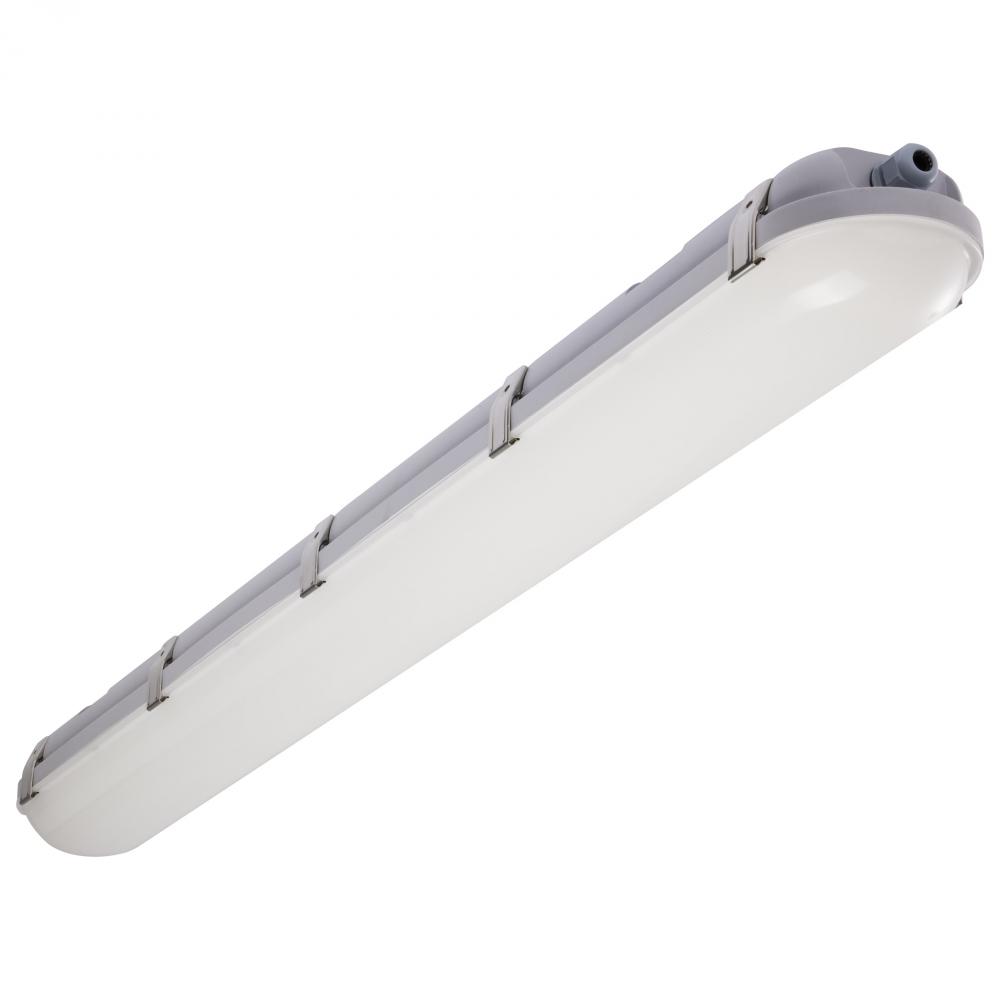

The SATCO NUVO 65-839 4 foot Vapor Proof LED fixture combines maximum flexibility with advanced functionality. It features selectable wattages of 40W, 50W, or 60W and 3 CCT selectable options for customizable illumination. An integrated microwave sensor pr
Material:
Polycarbonate (PC)
Mounting Procedure:
Ceiling/Wall
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Kraft Box
Photocell:
Integrated Microwave Sensor
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Sensor Type:
Microwave
Short Description:
4' VAPOR PROOF W/EM & SENSOR
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
No
Total Harmonic Distortion:
17.60%
Wattage Selectable:
Yes
Weight Lb.:
5.29
Standard Category:
Flush Mounts
Standard Subcategory:
Other Flush Mounts
Standard Option:
LED
