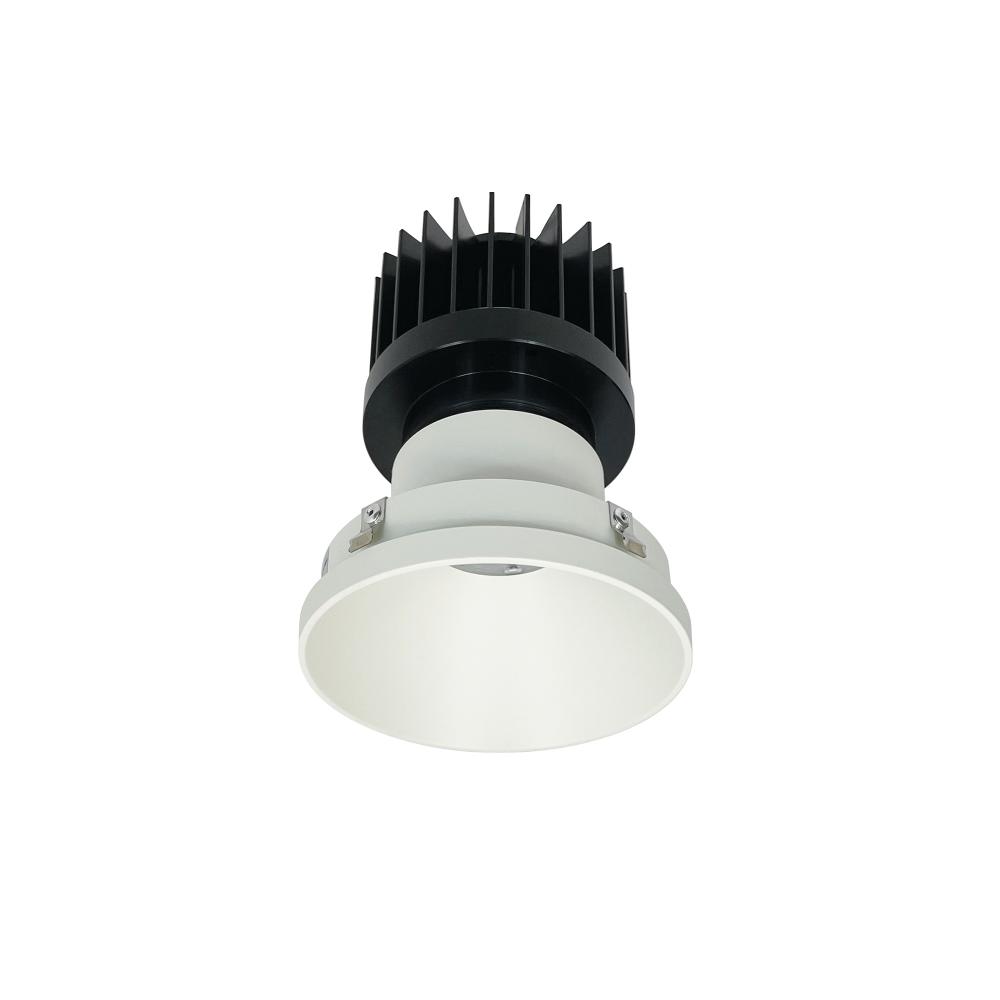

4" PLUS Trimless Iolite downlights have no exposed flange and do not extend beyond the ceiling plane. Iolite PLUS Trimless requires a PLUS Trimless Mud Ring and New Construction housing. Deep regressed cone reflector optimizes visual cut-off.
Required Trimless Mud Plate: NIO-TLMR-4PR
Compatible Housing: NHIOICD-415, NHIOICD-420, NHIOICD-425, NHIOICDCP-415, NHIOICDCP-420, NHIOICDCP-425
Lumens / Wattage: Up to 2500lm / 28W (varies by housing)
Color Temperature: 5000K
Color Rendering Index: 90 CRI
Beam Spread: Three field changeable optics included
Finish: White
Listing: cULus listed for wet locations
Accessories: NIO-AS, NIO-HC, NIO-4PRTFA
Additional Details:
Category:
Recessed
Product Line:
LE46
Est. Shipping Wt.:
2
Length:
3.625
Lumens / Light Output:
1500lm / 2000lm / 2500lm (varies by housing)
Ship Carton Height:
3.375
Ship Carton Length:
9.75
Ship Carton Width:
4
Weight:
.85
CCT:
5000K
CEC Database:
Y
CEC Item Number:
NIO-4********
CEC Substitute Item:
NIO-4PSTLA27XWW/HL
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
15
Master Box L:
21
Master Box Qty:
24
Master Box W:
13
Master Box Wt.:
31
Product Family:
4" Iolite Dedicated Trimless
Safety Listing:
cULus
Wattage:
20W / 24W / 28W
Standard Category:
Recessed Ltg.
Standard Subcategory:
Other Recessed Ltg.
Standard Option:
Title 24
Product Line:
LE46
