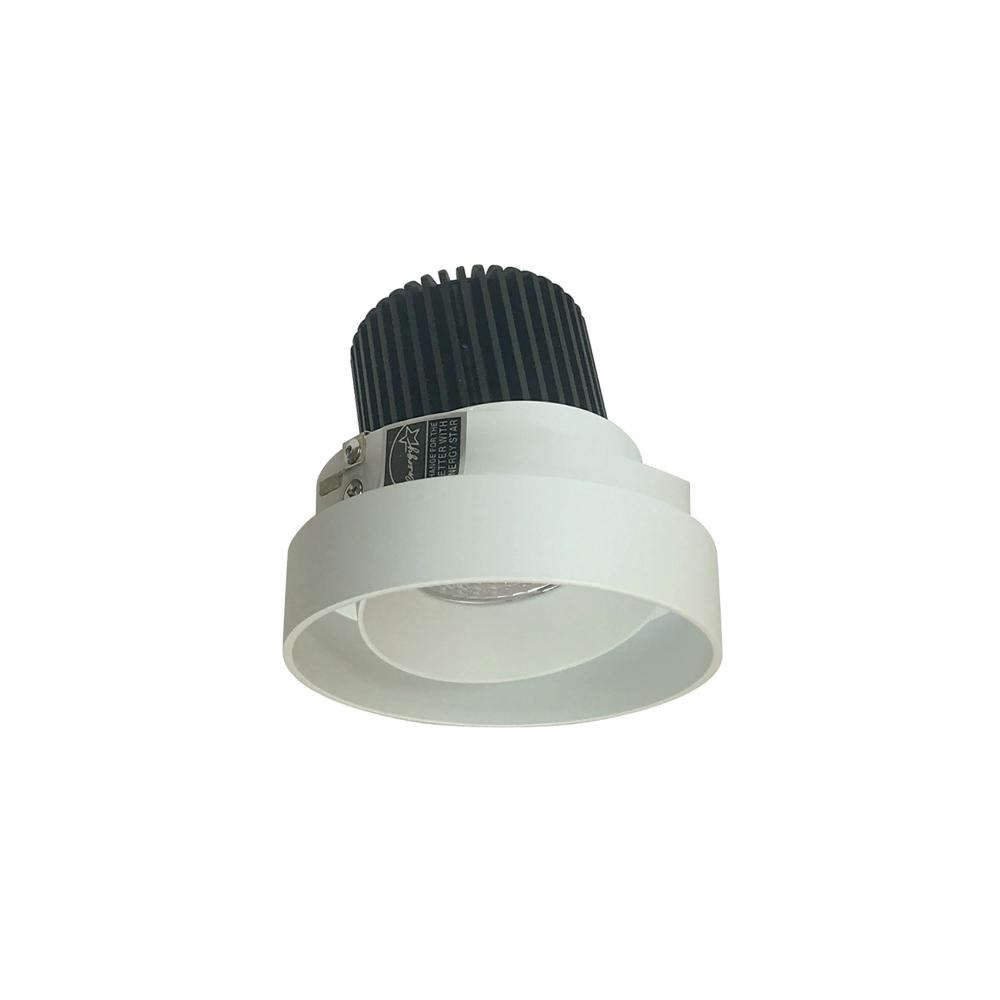

4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Regressed cone reflector optimizes visual cut-off and adjust up to 35°
Required Trimless Mud Plate: NIO-TLMR-4RA
Compatible Housing: NHIOICD-48. NHIOICDCP-48
Lumens / Wattage: 850lm / 12W
Color Temperature: 4000K
Color Rendering Index: 90 CRI
Beam Spread: 10° Spot (fixed)
Finish: White Adjustable / White Reflector
Listing: cULus listed for damp locations
Accessories: NIO-AS, NIO-HC, NIO-TLSUCTION
Additional Details:
Category:
Recessed
Product Line:
LE46
Est. Shipping Wt.:
2
Lumens / Light Output:
850lm
Ship Carton Height:
3.5
Ship Carton Length:
9
Ship Carton Width:
6
CCT:
4000K
CEC Database:
Y
CEC Item Number:
NIO-4********
CEC Substitute Item:
NIO-4RTLA40XBZ/HL
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
12
Master Box L:
17
Master Box Qty:
12
Master Box W:
13
Master Box Wt.:
10
Product Family:
4" Iolite Dedicated Trimless
Safety Listing:
cULus
Wattage:
12W
Standard Category:
Recessed Ltg.
Standard Subcategory:
Other Recessed Ltg.
Standard Finish:
White
Standard Option:
Title 24
Product Line:
LE46
