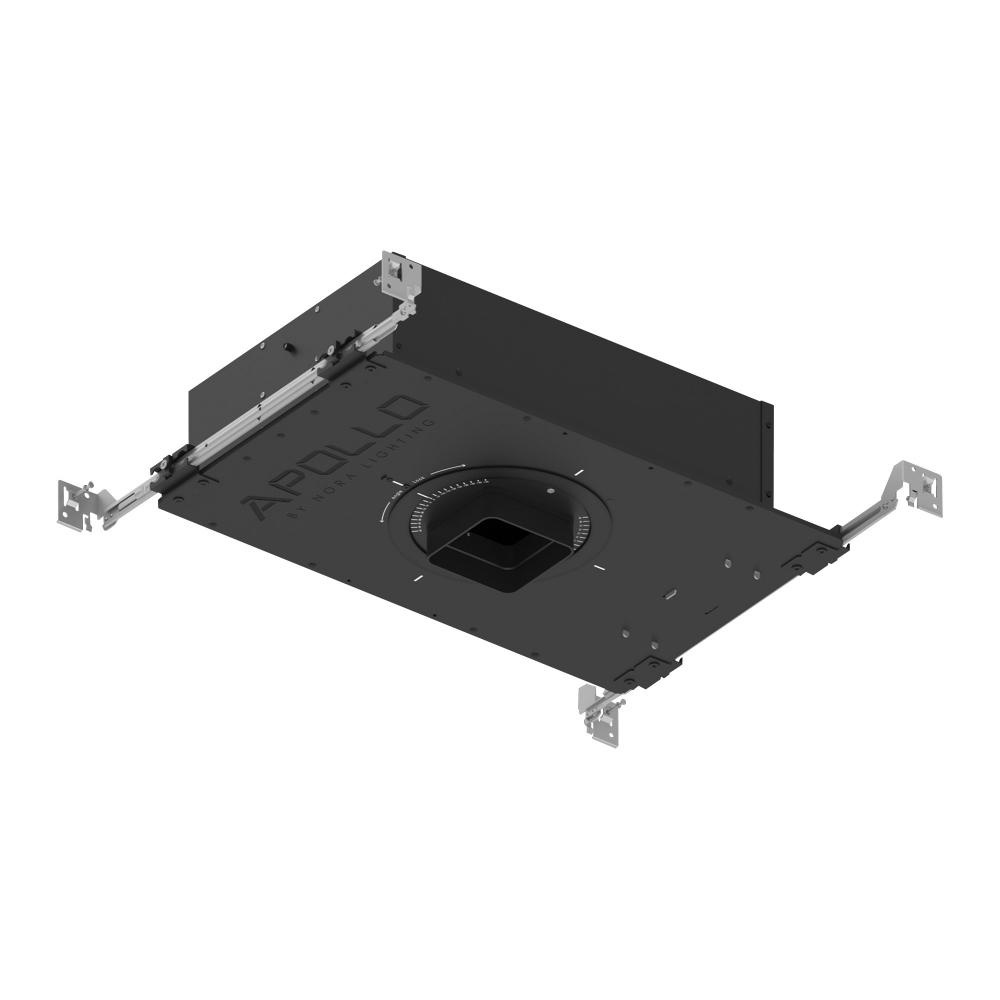

Apollo Non-IC new construction housing require a minimum clearance of 3" from thermal insulation. Airtight construction provides energy savings by reducing the flow of air through the ceiling. Adjustable LED mechanism allows for 361° horizontal rotation and 45° vertical aiming. Optimized TIR optics directs the light through the center of the aperture for maximum efficiency and low aperture brightness.
Input Voltage: 120/277V
Lumens / Wattage: 2000lm / 30W
Color Temperature: Comfort Dim (3000K to 2000K)
Color Rendering Index: 90+ CRI
Beam Spread: 26° Spot
Dimming: Triac, ELV or 0-10V
Ceiling Thickness: 1.25" to 1.625"
Compatible Trims: NAPF-3SDN, NAPF-3SPH, NAPF-3SWW, NAPT-3SDN, NAPT-3SPH, NAPT-3SWW
Listing: cULus Listed for Damp Locations (Wet locations when used with lensed trim)
Additional Details:
Category:
Recessed
Product Line:
AP01
Est. Shipping Wt.:
14
Length:
1.75
Lumens / Light Output:
2000lm
Ship Carton Height:
9
Ship Carton Length:
24
Ship Carton Width:
18
Weight:
7.5
CCT:
Comfort Dim (3000K-2000K)
CRI:
90
DLC Listed:
No
Master Box H:
9
Master Box L:
24
Master Box Qty:
1
Master Box W:
18
Master Box Wt.:
14
Product Family:
Apollo
Safety Listing:
cULus
Wattage:
30W
Standard Category:
Recessed Ltg.
Standard Subcategory:
Recessed Housing New
Product Line:
AP01
