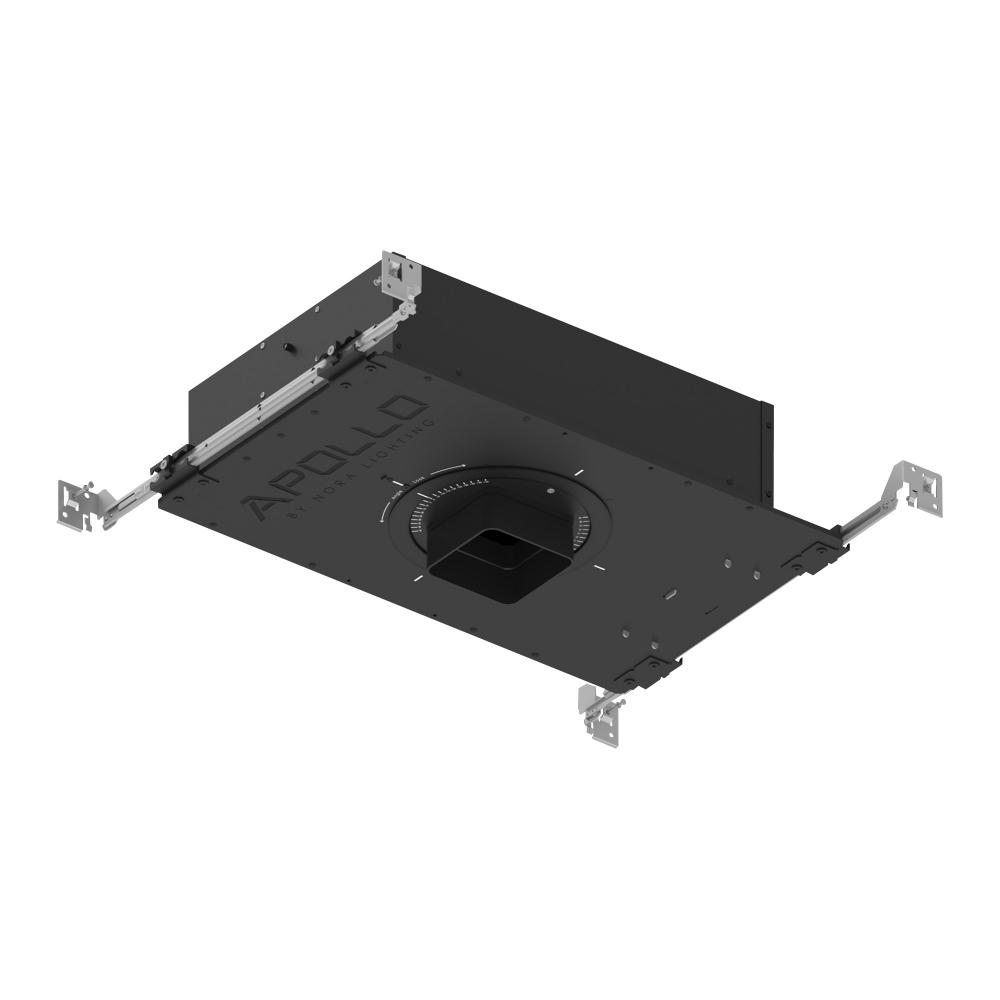

Apollo new construction housing for use in insulated ceilings can be in direct contact with insulation. Airtight construction provides energy savings by reducing the flow of air through the ceiling. Adjustable LED mechanism allows for 361° horizontal rotation and 45° vertical aiming. Optimized TIR optics directs the light through the center of the aperture for maximum efficiency and low aperture brightness.
Input Voltage: 120-277V
Lumens / Wattage: 1500lm / 24W
Color Temperature: 3000K
Color Rendering Index: 90+ CRI
Beam Spread: 15° Narrow Spot
Dimming: 0-10V
Ceiling Thickness: 1.625" to 2"
Compatible Trims: NAPF-3SDN, NAPF-3SPH, NAPF-3SWW, NAPT-3SDN, NAPT-3SPH, NAPT-3SWW
Listing: cULus Listed for Damp Locations (Wet locations when used with lensed trim)
Additional Details:
Category:
Recessed
Product Line:
AP01
Est. Shipping Wt.:
15
Length:
1.75
Lumens / Light Output:
1500lm
Ship Carton Height:
9
Ship Carton Length:
24
Ship Carton Width:
18
Weight:
8
CCT:
3000K
CEC Database:
Y
CEC Item Number:
NHAPNIC-3* ** ** ** *** **** + NAP*-3******
CEC Substitute Item:
NHAPNIC-3S20L33015DP
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
9
Master Box L:
24
Master Box Qty:
1
Master Box W:
18
Master Box Wt.:
15
Product Family:
Apollo
Safety Listing:
cULus
Wattage:
24W
Standard Category:
Recessed Ltg.
Standard Subcategory:
Recessed Housing New
Standard Option:
Title 24
Product Line:
AP01
