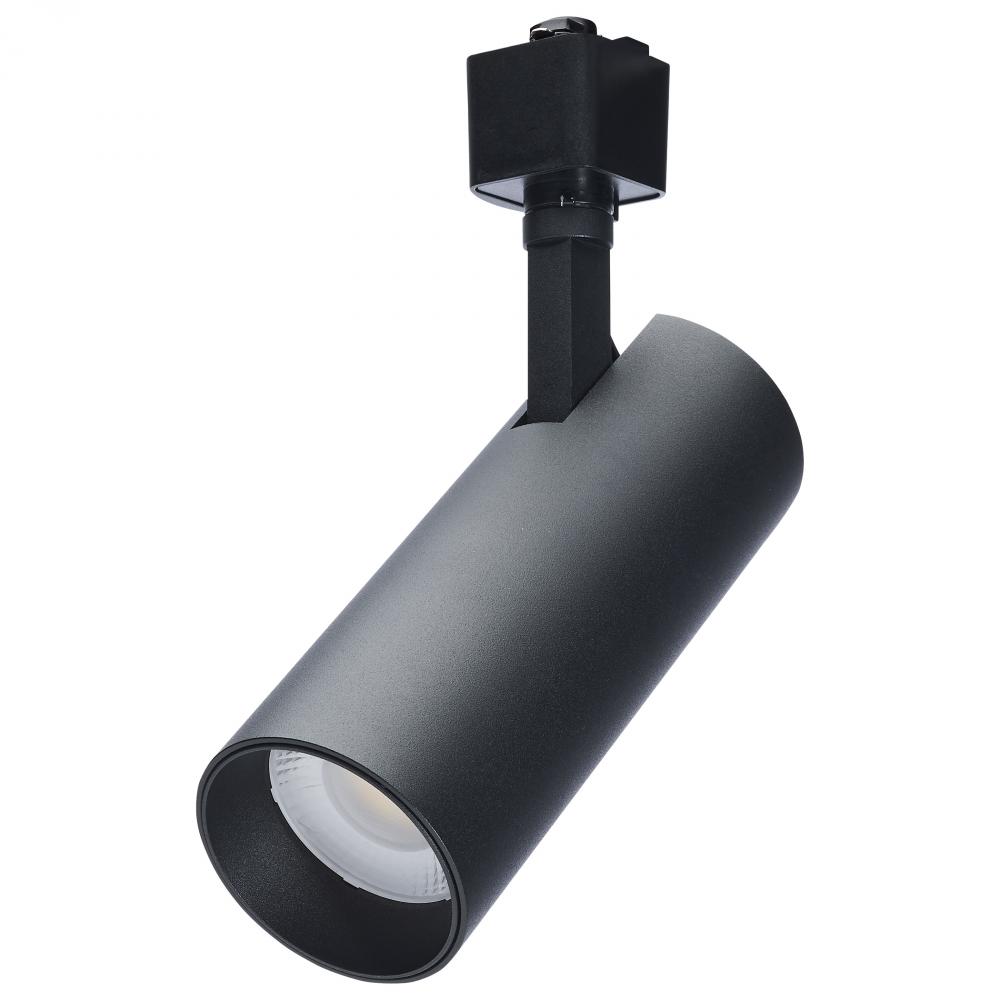

20 Watt LED Track Head; 36 Degree Beam Spread; 5 CCT Selectable; Matte Black Finish
Additional Details:
Category:
Track Lighting
Sub Category:
Track Head
Style:
Contemporary
Bulb Volts1:
120V
Avg Rated Hours:
30000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
8.94
Each Length:
3.07
Each Width:
2.68
Length:
6.31
Lumens:
1400L
Tariff Code:
9405.11.6020
Warranty:
3 Year Limited - Fixtures
Amps:
0.180A
ANSI Base:
Integrated
Beam Angle:
36
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Function:
120V only
Dimming Type:
Triac
Each Cube:
0.0426
Each Quantity:
1
Efficacy:
70.00 LPW
FCC Compliant:
Yes
Feature 1:
90 CRI High Quality Light
Feature 2:
36 Degree Beam Angle
Feature 3:
Satco H-Track Compatible
Feature 4:
Matte black finish
Feature 5:
5 CCT Selectable
Feature 6:
Dimmable
Feature 7:
T24 Compliant
Feature 8:
30,000 Life Hours
Feature 9:
3 Year Warranty
Finish Family:
Black
Fixture shape:
Cylinder
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Clear
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO NUVO's TH712 LED track head fixture with a 36 degree beam spread, combines functionality and style for all of your lighting projects. This track head is designed to provide direct lighting in compact spaces and is CCT selectable, offering five di
Material:
Aluminum / Steel
Mounting Procedure:
Track
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED track head fixtures available in 36 and 48 degree beam spreads, combine functionality and style for your lighting projects. These track heads are designed to provide direct lighting in compact spaces and are CCT selectable, offering fi
Safety Listing:
cETLus;cETLus - Listed
SDS class:
LED_Fixture
Short Description:
20W CCT LED TRACK HD 36 DG BLK
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Track Head Style:
H-Style
Wattage Selectable:
No
Weight Lb.:
1.02
Standard Category:
Track Ltg.
Standard Subcategory:
Track Heads
Standard Option:
LED
