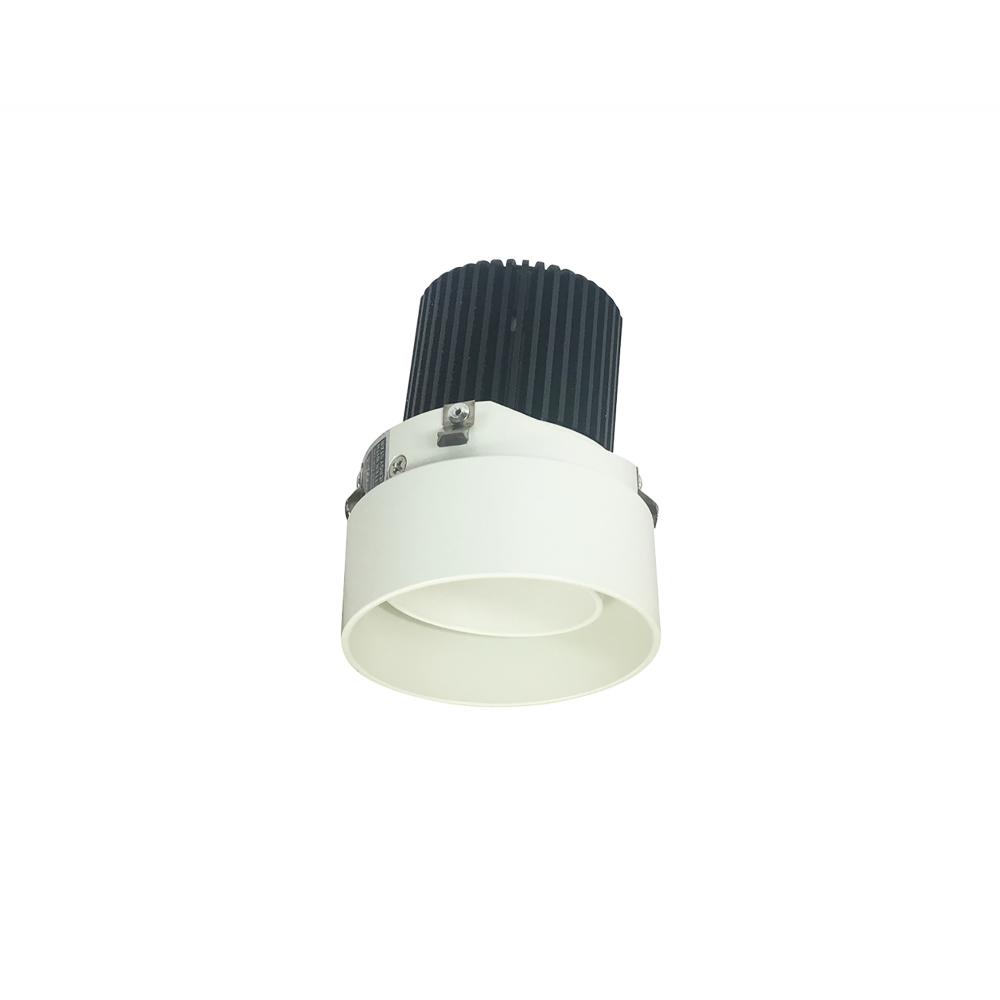

2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Regressed cone reflector optimizes visual cut-off and adjust up to 15°
Required Trimless Mud Plate: NIO-TLMR-2RA
Compatible Housing: NHIOICD-28. NHIOICDCP-28
Lumens / Wattage: 1000lm / 14W
Color Temperature: 3000K
Color Rendering Index: 90 CRI
Beam Spread: Three field changeable optics included
Finish: White Adjustable / White Reflector
Listing: cULus listed for damp locations
Accessories: NIO-AS, NIO-HC, NIO-TLSUCTION
Additional Details:
Category:
Recessed
Product Line:
LE46
Est. Shipping Wt.:
2
Lumens / Light Output:
1000lm
Ship Carton Height:
3.5
Ship Carton Length:
9
Ship Carton Width:
6
CCT:
3000K
CEC Database:
Y
CEC Item Number:
NIO-2********
CEC Substitute Item:
NIO-2RTLA35QWW
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
12
Master Box L:
17
Master Box Qty:
12
Master Box W:
13
Master Box Wt.:
10
Product Family:
2" Iolite Dedicated Trimless
Safety Listing:
cULus
Wattage:
14W
Standard Category:
Recessed Ltg.
Standard Subcategory:
Recessed Lighting Trims
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
Title 24
Product Line:
LE46
