Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Daylight
Dimmable:
Yes-Dimmable
Each Height:
5.31
Each Length:
26.1
Each Width:
5.2
Length:
24
Lumens:
1950L-3500L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.125-0.054/0.167-0.072/0.208-0.090A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B1-U3-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium; Standard
DLC Primary Use:
Stairwell and Passageway Luminaires;Direct Linear Ambient Luminaires
Each Cube:
0.4171
Each Quantity:
1
Efficacy:
130.00/140.00/135.00 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable (Wattage and CCT)
Feature 2:
Flicker Free Driver
Feature 3:
Multiple Mounting Options
Feature 4:
2-Foot, Integrated Microwave Sensor Model
Feature 5:
Durable, Polycarbonate Lens
Feature 6:
Damp location rated
Feature 7:
Numerous Accessories Available (Sold Separately)
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
Incandescent Equivalent:
150W-175W
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:

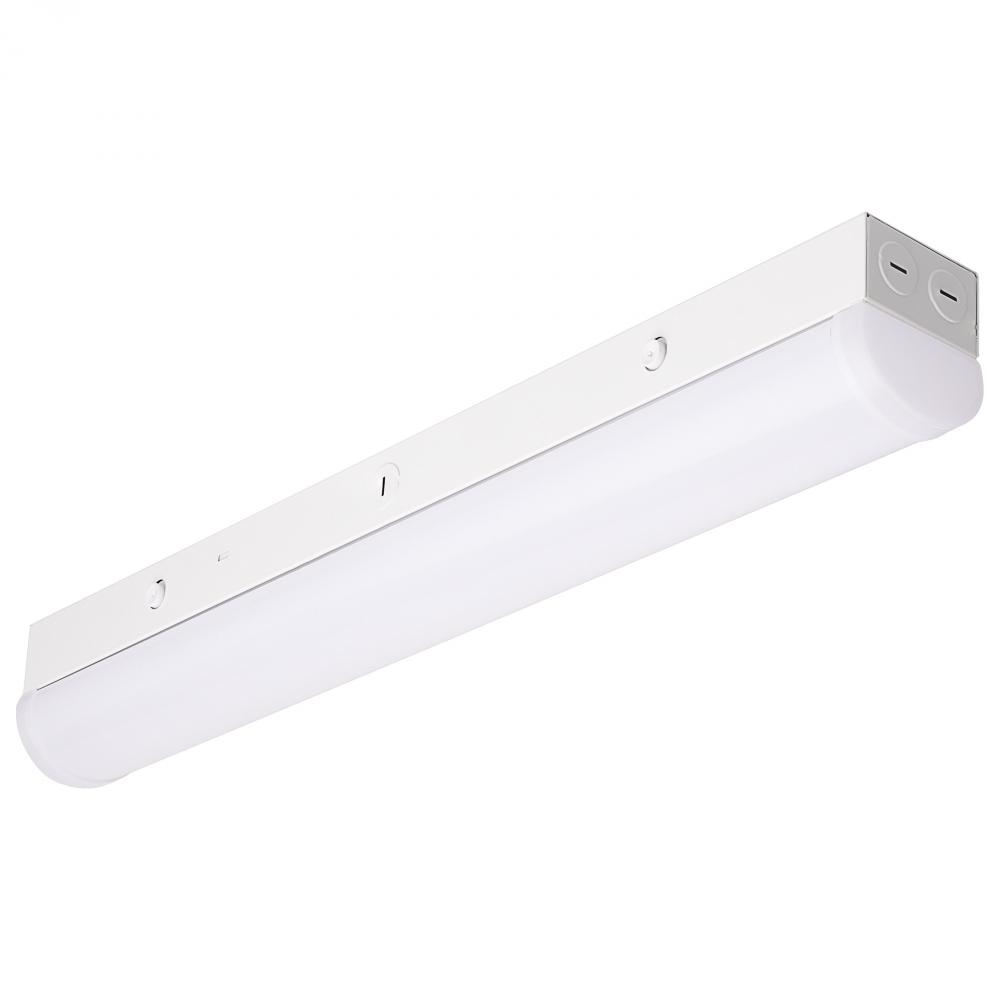

SATCO NUVO's 65-1700R1 2-foot LED Linear Strip Fixture offers adaptable lighting for diverse applications. This field-selectable fixture provides wattage options of 15W, 20W, or 25W and color temperature settings of 3500K, 4000K, or 5000K. With a unive
Material:
Steel
Mounting Diameter:
4.75
Mounting Height:
0.06
Mounting Procedure:
Ceiling/Wall
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Bi-Level Microwave Sensor
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes, providing versatile lighting solutions for a range of applications. All fixtures are CCT selectable with 3500K, 4000K, and 5000K options, allowing users to adjust the color temperature
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Sensor Type:
Microwave
Short Description:
2' LINEAR STRIP W/SENSOR
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
13.61%
Wattage Selectable:
Yes
Weight Lb.:
1.78
Standard Category:
Undercabinet
Standard Subcategory:
Strip Lights
Standard Option:
LED
, Prop 65
