Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
3.94
Each Length:
25.98
Each Width:
5.71
Length:
23.62
Lumens:
2164L-2505L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.167-0.058A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Thailand
CRI:
80+
Dimmable Function:
0-10V; Integrated Sensor; Bi-Level Dimmable
DLC Classification:
Standard
DLC Primary Use:
Direct Linear Ambient Luminaires
Each Cube:
0.3382
Each Quantity:
1
Efficacy:
108.20/116.73/125.25 LPW
FCC Compliant:
Yes
Feature 1:
3 CCT Selectable
Feature 10:
5 Year Warranty
Feature 2:
2 foot
Feature 3:
Vapor Proof with Microwave Sensor Model
Feature 4:
120-347 Voltage
Feature 5:
Durable, Gray Polycarbonate Material
Feature 6:
IP65 & IK08 Rated
Feature 7:
Wet Location Rated
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
Gray
Fixture shape:
Linear
Flicker Free:
No
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
HID Equiv:
50W
Impact Rating (IK):
IK08
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:

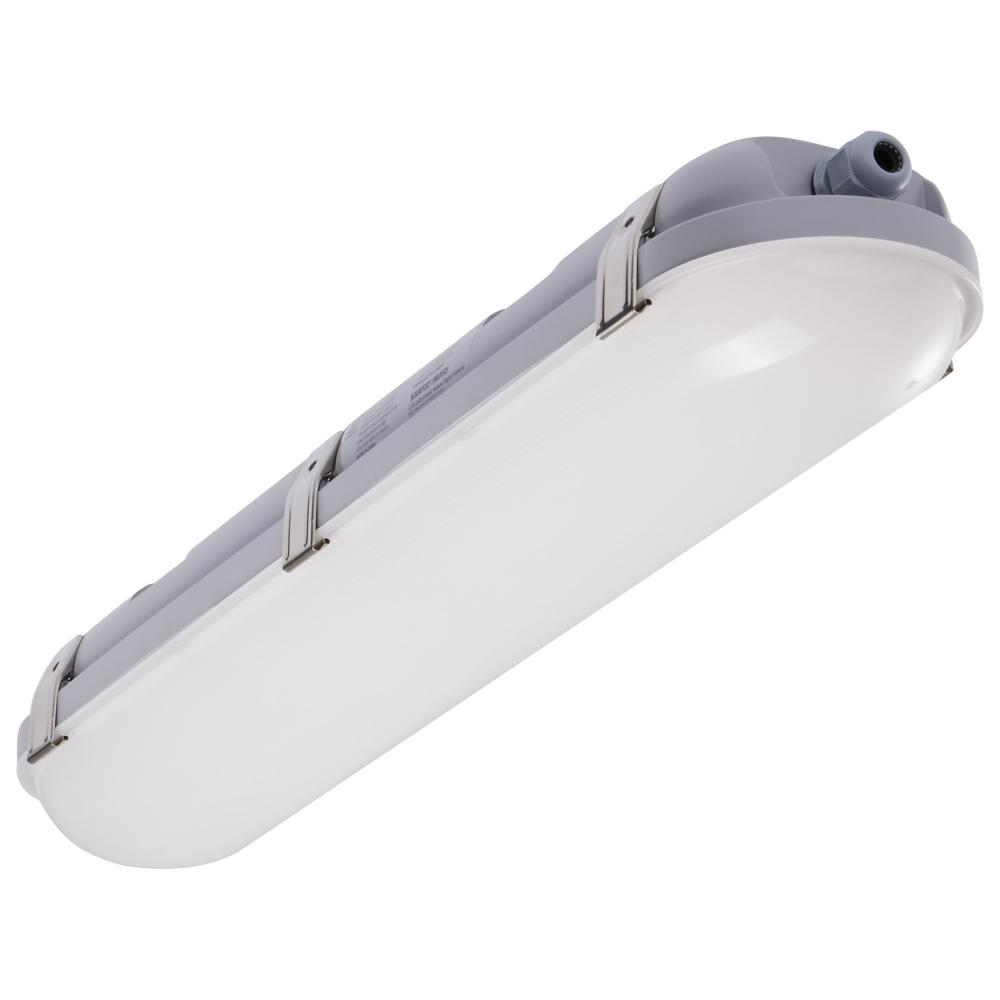

The SATCO NUVO 65-823R1 2 foot Vapor Proof LED fixture is designed for reliability and energy efficiency in demanding environments. Operating at 20 watts with 3 CCT selectable options, it adapts easily to different lighting needs. An integrated microwave s
Material:
Polycarbonate (PC)
Mounting Procedure:
Ceiling/Wall
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Integrated Microwave Sensor
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
2' 20W LINEAR VAPOR PROOF
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
10.30%
Wattage Selectable:
No
Weight Lb.:
3.31
Standard Category:
Utility
Standard Subcategory:
Other Utility
Standard Finish:
Gray
Standard Option:
LED
, Prop 65
Standard Lumens:
1601-2600
Standard Kelvin:
4001-4500
