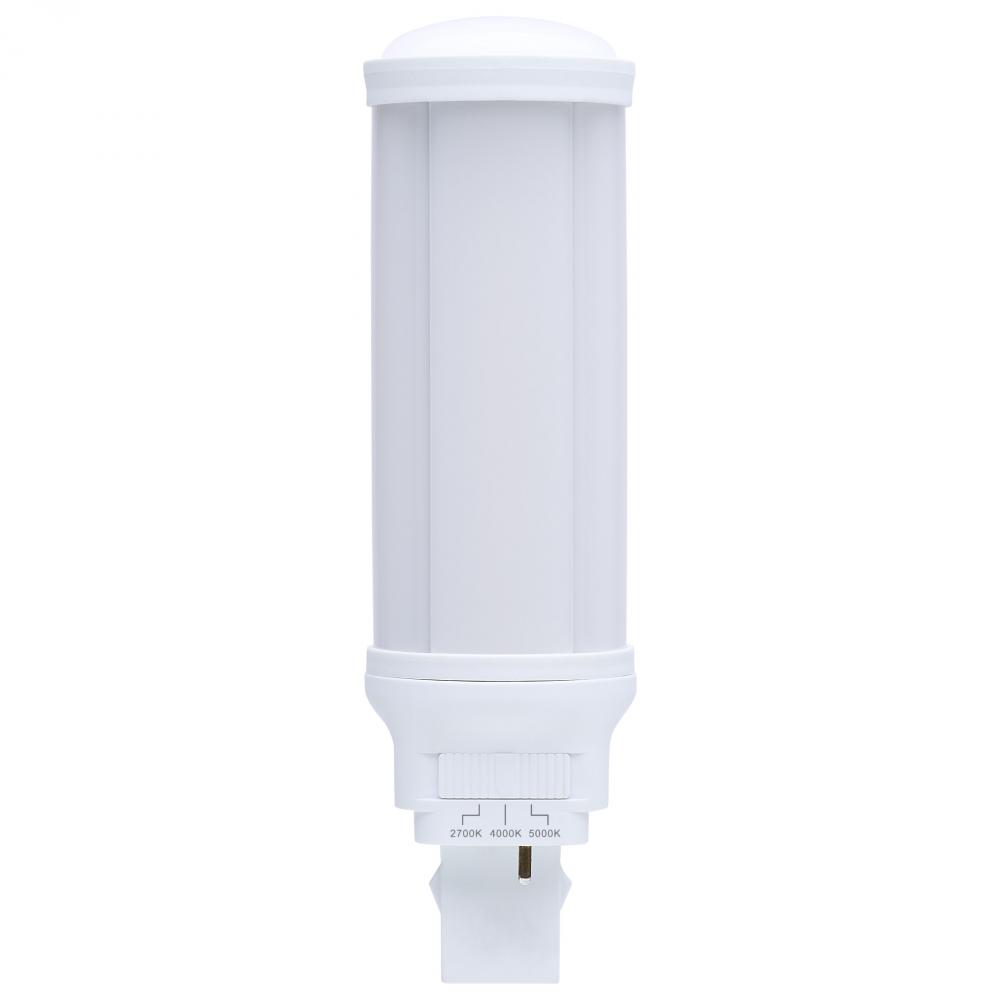

18 Watt LED PL; 27K/4K/5K CCT Selectable; GX32d-3 Base; 28W CFL Replacement; Type B Ballast Bypass; 120-277 Range Voltage
Additional Details:
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
15000
Bulb Kelvin:
2700K/4000K/5000K
Bulb Shape:
PL
Diameter:
1.93
EA Length:
2.09
Harmonized Codes:
8539.52.0091
Length:
6.89
Lumens:
1800L
Shap Carton Width:
2.09
Ship Carton Height:
7.09
Ship Weight:
0.4
Warranty:
2-Years
Weight:
0.32
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
320
Bulb ANSI Base:
GX32d-3
Bulb Base:
GX32d-3
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0179
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated for SLED; Shape Not Regulated for SDDL
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White to Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
100.00 LPW
Enclosed Fixture Use:
No
FCC Compliant:
Yes
Feature 1:
3 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
120-277V Range Voltage
Feature 4:
GX32d-3 Base
Feature 5:
Damp Location Rated
Feature 6:
15,000 Hour Functional Life
Feature 7:
2 Year Warranty
Flourescent Equivalent:
28W
Has Camera:
No
Has Emergency Battery:
No
Housing Color:
White
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
Upgrade outdated CFLs with SATCO NUVO's S11546 Type B ballast bypass LED replacement lamp - designed for direct-wire installation, eliminating the need for a ballast and reducing maintenance costs. This 18W model replaces a traditional 28W CFL, providi
Material:
Aluminum / Plastic
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Upgrade outdated CFLs with SATCO NUVO's Type B ballast bypass LED replacement lamps—designed for direct-wire installation, eliminating the need for a ballast and reducing maintenance costs. These PL-shaped lamps provide uniform illumination with a wi
SDS class:
LED_Lamp
Short Description:
18W/LED/CFL/3CCT/BP/GX32D-3
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
18W
Standard Category:
Specialty Items
Standard Subcategory:
Ballasts
:
