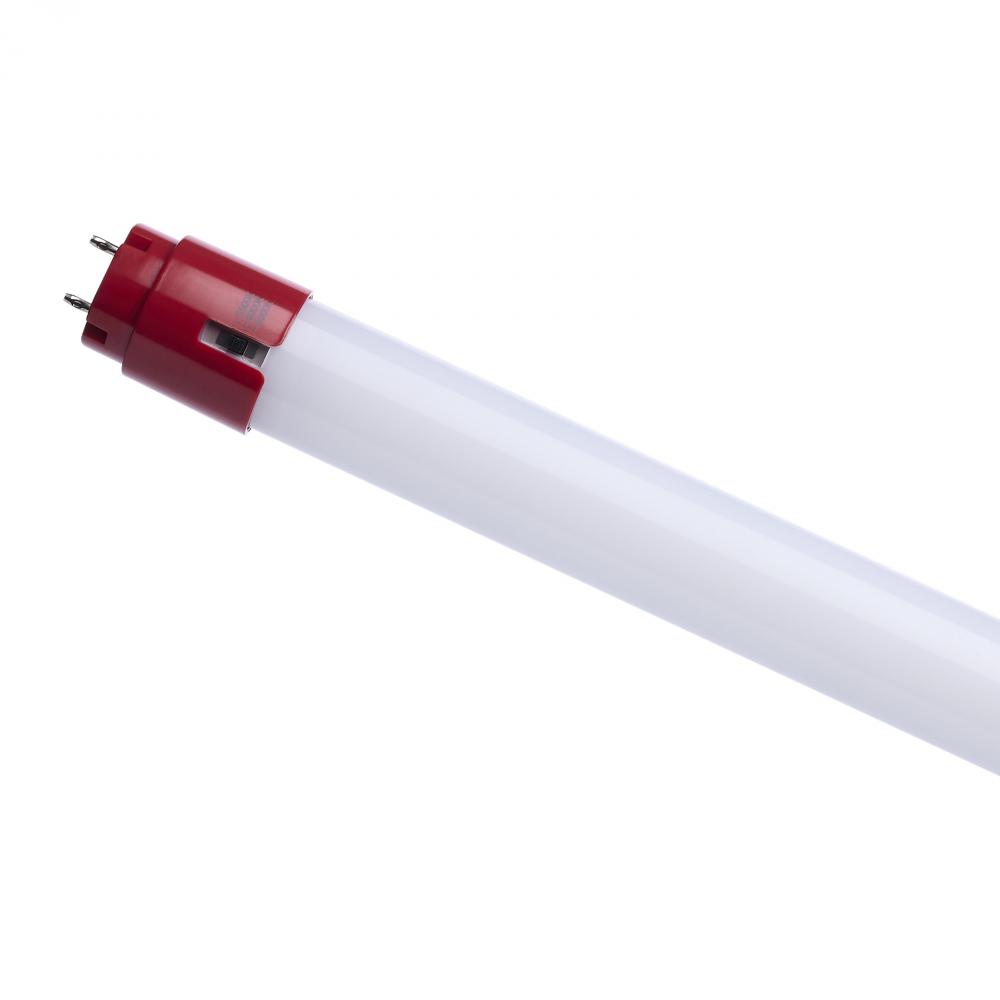

15 Watt T8 LED; 48 Inch; 35K/40K/50K CCT Selectable; Medium Bi Pin Base; Type B Ballast Bypass; 120-277V
Additional Details:
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3500K/4000K/5000K
Bulb Shape:
T8
Diameter:
1.16
EA Length:
51.57
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
2000L
Shap Carton Width:
1.38
Ship Carton Height:
1.38
Ship Weight:
1.15
Warranty:
5-Years
Weight:
1.12
Additional Info:
3.5 Watts and 500 Lumens in Emergency Mode
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Battery Chemistry:
Lithium-ion (Li-ion)
Beam Spread:
140
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Carton Cubic Feet:
0.0568
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White to Natural Light
Country Of Origin:
Vietnam
CRI:
80+
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-ZM2STB
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
133.33 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
4' T8 with Integrated Emergency Battery Backup
Feature 10:
DLC Listed
Feature 2:
Type B - Ballast Bypass
Feature 3:
Damp location rated
Feature 4:
Enclosed fixture rated
Feature 5:
CCT Selectable - 3500K/4000K/5000K
Feature 6:
Pre-Wired Lamp Holders Included
Feature 7:
Red End-Caps and Lamp Holders for Easy Identification
Feature 8:
Replaces 32W Fluorescent Lamps
Feature 9:
5 Year Warranty
Flourescent Equivalent:
32W
Has Camera:
No
Has Emergency Battery:
No
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures. Maximum Mounting Height: 13 Feet
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Leg Spacing:
0.51
Location Rating:
Damp
Long Description:
SATCO NUVO's S11732 LED T8 Lamps with Emergency Battery Backup are UL924 listed for use in emergency lighting applications. Custom lamp holders and set screws lock the lamp in place for a secure installation, and lamps feature red endcaps so they can b
Material:
Aluminum / Polycarbonate (PC)
No Switching Cycles:
1000
Nominal Length:
48.0
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
0C (+32F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Sleeve
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED T8 Lamps with Emergency Battery Backup are UL924 listed for use in emergency lighting applications. Custom lamp holders and set screws lock the lamp in place for a secure installation, and lamps feature red endcaps so they can be easil
SDS class:
LED_Lamp
Short Description:
15WT8/LED/CCT/EM/BP
Specification Notes:
Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
Technology:
LED
Title 20 Compliant:
Yes
Title 24 Compliant:
No
Total Harmonic Distortion:
<25%
Tube Guard Use:
No
Wattage Selectable:
No
Watts:
15W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
:
