Category:
LED
Sub-Category:
LED T8
Volts:
120V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
T8
Diameter:
1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
48
Lumens:
1800L
Shap Carton Width:
1
Ship Carton Height:
1
Ship Weight:
0.5
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.45
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120V line voltage; No ballast or external driver required
Beam Spread:
220
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0278
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimming Type:
Reverse Phase or Phase Selectable
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLUKVT19TA0M
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
133.33 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Natural light
Feature 2:
Damp rated for indoor use
Feature 3:
Enclosed Rated Lamp
Feature 4:
L:48.00 D:1.00
Feature 5:
T8, Frosted Finish
Flourescent Equivalent:
25W
Housing Color:
White
Incandescent Equivalent:
70W
Installation Notes:
Not for use in vapor tight fixtures. Install only in non-shunted lampholders
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:

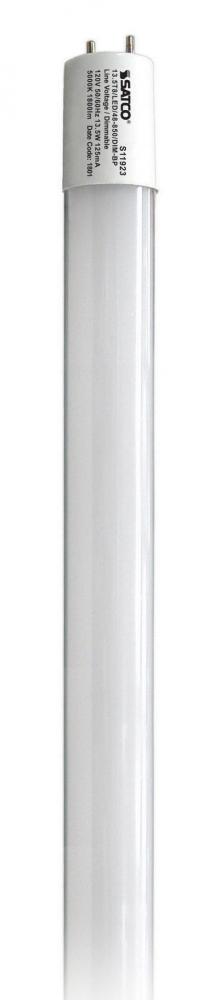

SATCO NUVO's S11923 13.5-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, thi
Material:
Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
4
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's 13.5-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp
SDS class:
LED_Lamp
Short Description:
13.5T8/LED/48-850/DIM-BP
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Tube Guard Use:
Yes
Wattage Selectable:
No
Watts:
13.5W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Finish:
White
Standard Style:
Traditional
Standard Lumens:
1601-2600
Standard Kelvin:
4501-5000
