Category:
Under Cabinet & Cove
Sub Category:
Linear Strip
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
1.38
Each Length:
22.2
Each Width:
3.74
Length:
22
Lumens:
859L-955L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.108A
ANSI Base:
Integrated
Beam Angle:
105
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube:
0.0663
Each Quantity:
1
Efficacy:
66.08/69.77/73.46 LPW
FCC Compliant:
Yes
Feature 1:
Counter Quick's high-quality design illuminates counter space with a clean, bright light that showcases natural and true colors
Feature 2:
Selectable CCT technology allows you to switch between 3000K, 4000K, and 5000K color temperatures; 90 CRI
Feature 3:
Two mounting options to best fit your installation: Use the integrated mounting screws or standard keyhole mounting
Feature 4:
Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)
Feature 5:
Various knockouts along the back and sides provide more access points for convenient wiring; An expanded internal compartment leaves room to work and stores the connected wire with plenty of room to close the fixture
Feature 6:
13W, White Powder Coated Aluminum body provides a high-quality, durable design that includes a textured lens for premium light distribution
Feature 7:
Low profile, slim design. Measures 22 in. Length x 3.5 in. Width x 1 in. Height
Finish Family:
White
Fixture shape:
Rectangle
Has Driver:
Yes
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Finish:
Frosted White
Lens Material:
Polycarbonate (PC)
Long Description:

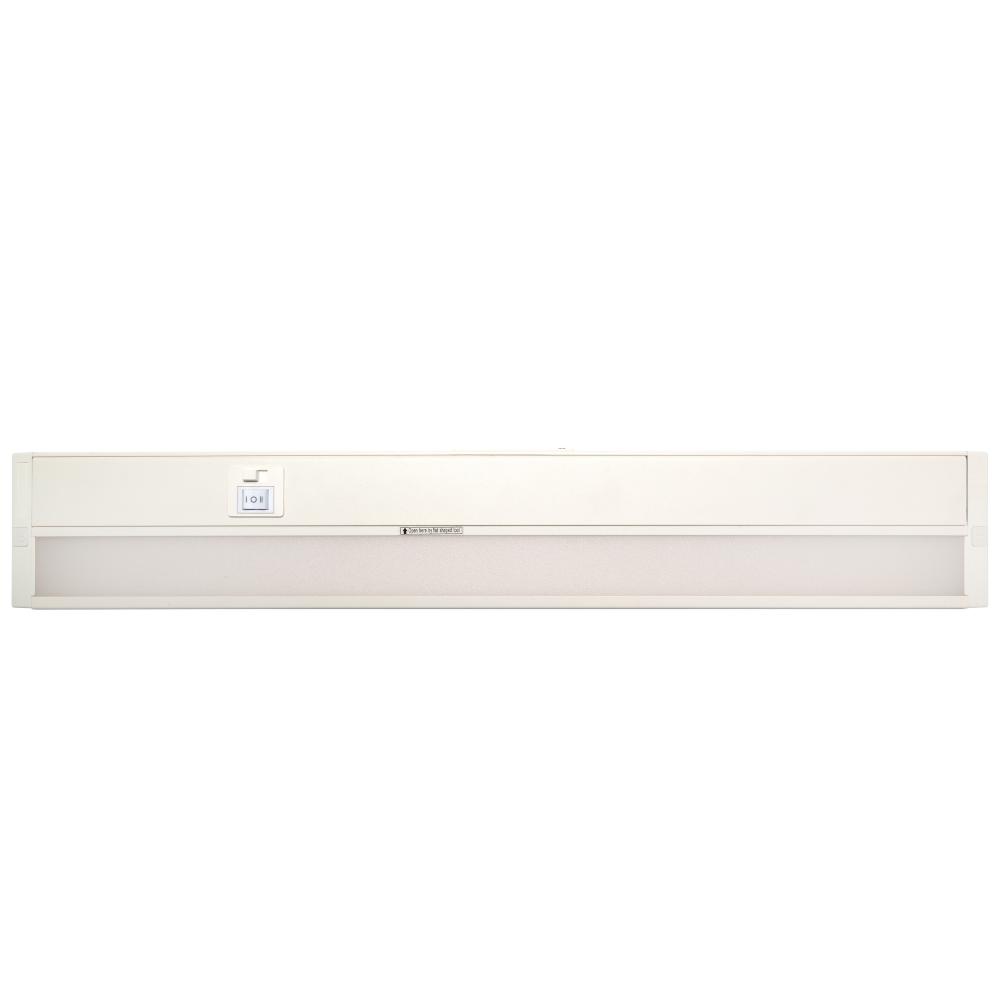

No matter how you hang it, install it, connect it, link it, wire it, or light it - the 63-503 22-inch White Counter QUICK LED under cabinet light is designed to help get the job done; with installation solutions that save on labor, quality, and durability
Material:
Aluminum
Mounting Procedure:
Under Cabinet: Screws
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
No matter how you hang it, install it, connect it, link it, wire it, or light it - Counter QUICK LED under cabinet lights are designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long, m
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
UNDER CAB LED SCCT 22" - WH
Sloped Ceiling Compatible:
No
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Weight Lb.:
1.28
Standard Category:
Undercabinet
Standard Subcategory:
LED Undercabinet Lights
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
LED
, Prop 65
Standard Lumens:
801-1100
Standard Kelvin:
4001-4500
