Category:
LED
Sub-Category:
LED T8
Volts:
Ballast Dependent
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K
Bulb Shape:
T8
Diameter:
1
EA Length:
50
Harmonized Codes:
8539.52.0051
Length:
48
Lumens:
1700L/1750L/1800L
Shap Carton Width:
6.5
Ship Carton Height:
6.7
Ship Weight:
8.75
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.55
Additional Info:
Sold in packs of 25
BAA Compliant:
No
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required, check compatibility
Beam Spread:
220
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
1.2601
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White to Neutral White
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-NRYM8J
DLC Primary Use:
Replacement Lamps (Plug and Play) (UL Type A)
Efficacy:
170.00/175.00/180.00 LPW
Enclosed Fixture Use:
Yes
Feature 1:
3 CCT Selectable
Feature 2:
Type A, Ballast Compatible Options
Feature 3:
50,000 Hour Functional Life
Feature 4:
5 Year Warranty
Feature 5:
All Glass Tube
Feature 6:
Ideal for use in: Commercial, Hospitality, Office, Retail, Warehouse, and more
Flourescent Equivalent:
32W
Has Emergency Battery:
No
Housing Color:
White
Incandescent Equivalent:
50W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:

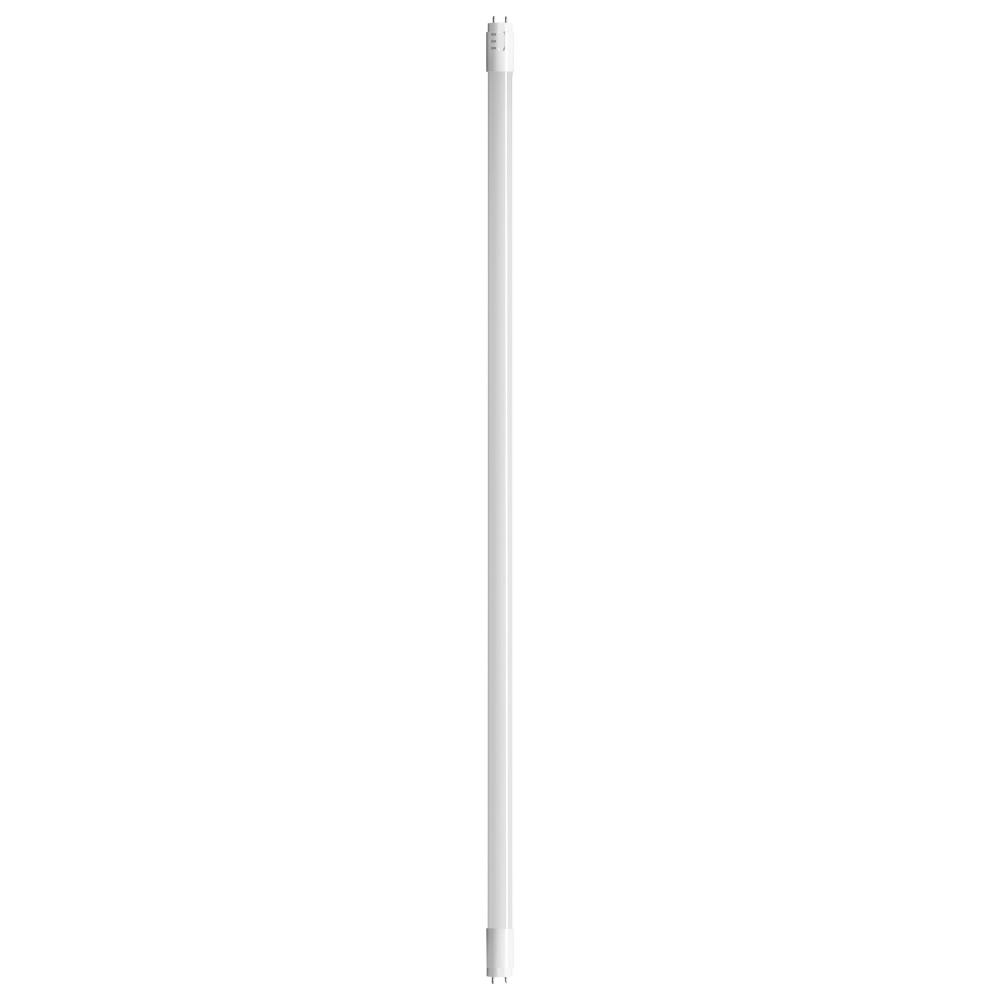

SATCO NUVO's, S11968, is one the most versatile Fluorescent to LED replacement lamps in the industry today. With it's Type A Ballast compatibility and ease of installation, this lamp will cover an extensive range of fixtures in a wide range of appl
Material:
Plastic
Nominal Length:
48
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
25
Romance Copy:
SATCO NUVO's Color Quick CCT selectable LED Linear T8 lamps are some of the most versatile Fluorescent to LED replacement lamps in the industry. Available in both Type A, Ballast Compatible and Type B, Ballast Bypass configurations, they cover a wide r
SDS class:
LED_Lamp
Short Description:
10T8/LED/48/830-835-840/DR
Style:
Utility
Surge Protection:
Ballast Dependent
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
10W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Lumens:
1601-2600
Standard Kelvin:
3001-3500
