Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Additional Info:
Candlepower: 240
Bulb Hours:
50000
Bulb Kelvin:
Warm to Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
4.72
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.6010
Lumens:
700L
Ship Carton Height:
5.39
Ship Carton Length:
5.39
Ship Carton Width:
2.36
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.083A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
108
CA Prop-65:
Lead
Candle Power:
240.0
Carton Cubic Feet:
0.0397
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
4.25 in. Cutout
Clearance Height:
2.0
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Reverse Phase or Phase Selectable
Efficacy:
70.00 LPW
FCC Compliant:
Yes
Feature 1:
ColorQuick CCT Selectable
Feature 2:
90 CRI
Feature 3:
Wet Location Rated
Feature 4:
Dimmable
Feature 5:
IC Rated
Feature 6:
Air Tight Rated
Feature 7:
Title 24 Compliant
Feature 8:
108-Degree Beam Angle
Feature 9:
120V
Finish Family:
White
Fixture shape:
Round
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
45W
Indoor Outdoor:
Indoor
Installation Notes:
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:

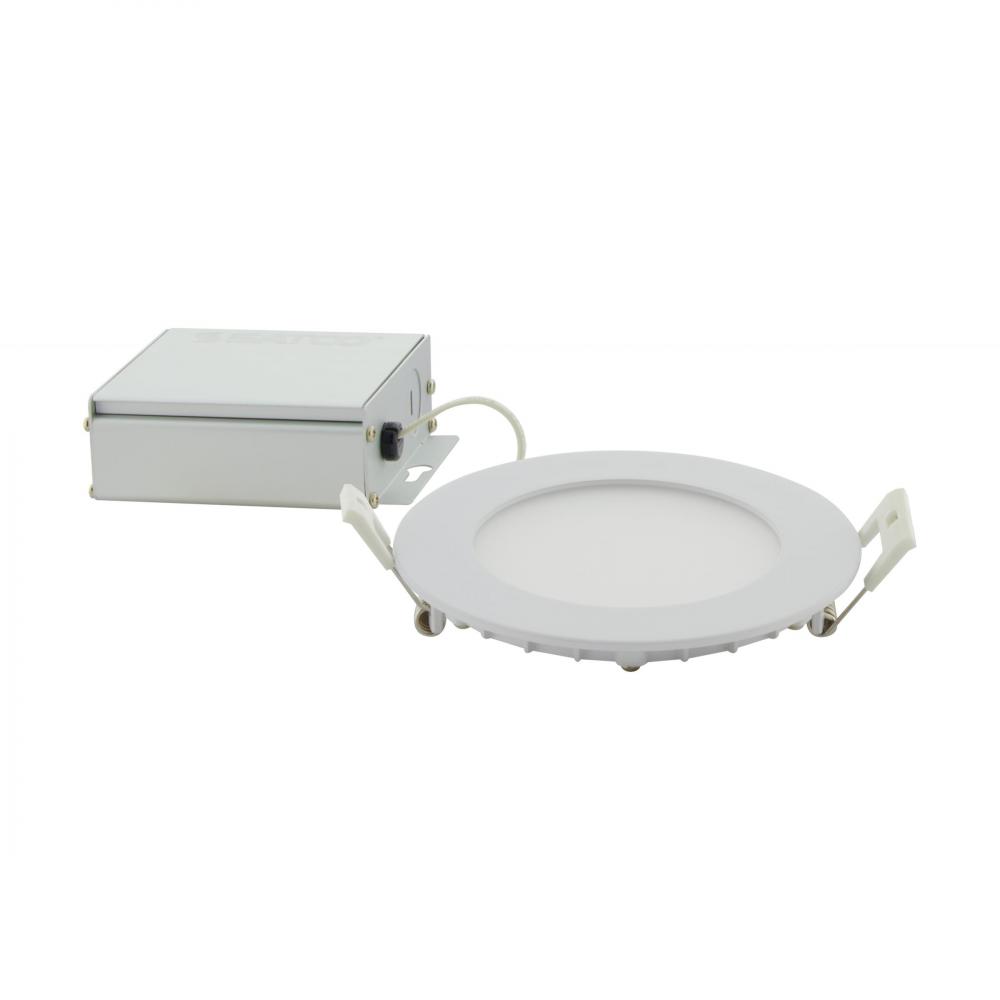

SATCO NUVO's S11826 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light.
Material:
Aluminum
Max Drywall Thickness:
12 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
52
Rec Spacing Between Fixtures:
3 ft. to 4 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A va
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
10WLED/DW/EL/4/CCT-SEL/RND/RD
Sloped Ceiling Compatible:
No
Specification Notes:
Lumens (L) vary with color temperature (K): 2700K 650L / 3000K 670L / 3500K 700L / 4000K 700L / 5000K 690L
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
White
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
0.71
Standard Category:
Recessed Ltg.
Standard Subcategory:
Other Recessed Ltg.
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
LED
, Prop 65
Standard Lumens:
450-800
Standard Kelvin:
4001-4500
